Panel Brand：IVO
Panel Size：12.1 inch
Resolution：1024(RGB)×768 , XGA
Display Area：245.76(W)×184.32(H) mm
Outline Size：279(W)×209(H)×9(D) mm
Brightness：350 cd/m2 (Typ.)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Best View on：-
Display Colors：262K/16.7M72%(CIE1931)
Frequency： 60Hz
Weight：518.7/545g (Typ./Max.)

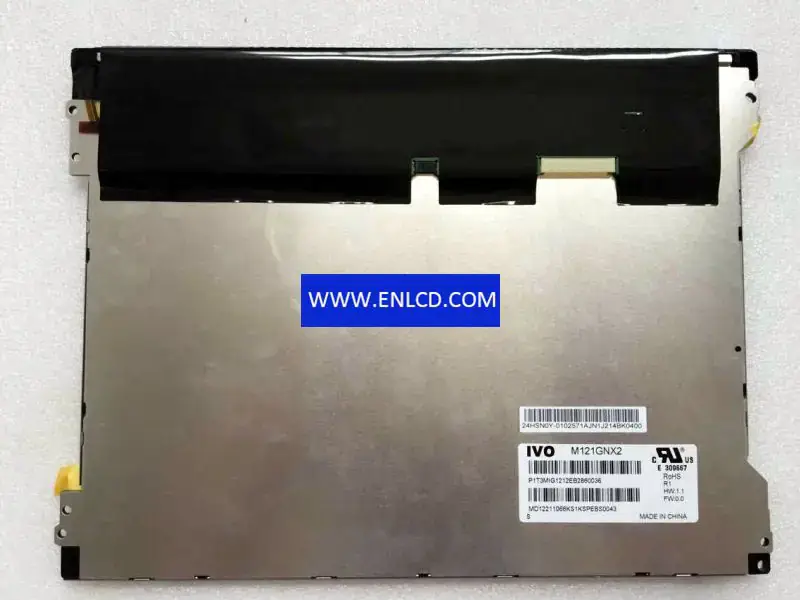

Panel Model：M121GNX2 R1
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：250.8(W)×189.4(H) mm
Surface：Antiglare
Contrast Ratio：800:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：16 (Typ.)(Tr+Td)
Lamp Type： 4 strings WLED , 30K hours , With LED Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
