Panel Brand：NEC

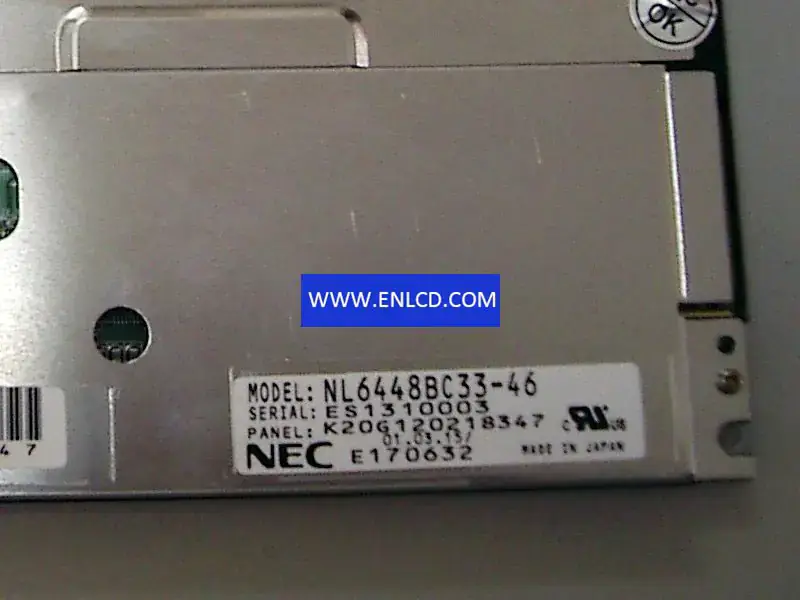

Panel Model：NL6448BC33-461 Compatible
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：640(RGB)×480 , VGA
Pixel Format：RGB Vertical Stripe
Display Area：211.2(W)×158.4(H) mm
Bezel Opening：215.4(W)×161.8(H) mm
Outline Size：243(W)×185.1(H)×11.5(D) mm
Surface：Clear, Hard coating (3H)
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
Viewing Angle：70/70/45/55 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o'clock
Response Time：6/40 (Typ.)(Tr/Td)
Display Colors：262K 43%(CIE1931)
Lamp Type：2 pcsCCFL, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 530/550g (Typ./Max.)
Application Industrial Application,Signal Interface： CMOS (1 ch, 6-bit), 31 pins, Connector
Input Voltage：3.3/5.0V (Typ.)(VCC)
Environment：Operating Temp.: 0 ~ 65 °C ;Storage Temp.: -20 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
