Brand：CPT

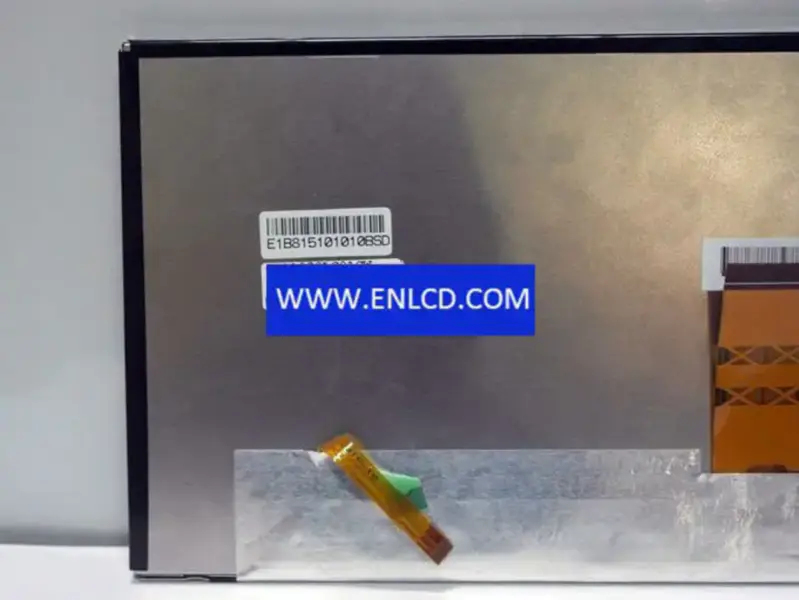

Model：CLAA080LG01CW
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration： RGB Vertical Stripe
Active Area：175.2(H)×105.12(V) mm
Outline Dim.：186.5(H)×117.2(V)×6.66(D) mm
Bezel Area：177.4(H)×107.32(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：750 cd/m2 (Typ.)
Contrast Ratio： 400:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 71%(CIE1931)
Light Source：WLED[11S2P], 30K hours, W/O Driver
Weight： 195g (Typ.)
Designed For： Automotive Display,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 60 pinsTTL (1 ch, 6-bit), FPC
Power Supply：3.3/12.0/18.0/-6.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s2)
