Manufacturer：CPT
Screen Size： 8.0 inch
Pixel Number： 1024(RGB)×768(XGA)
Active Area(mm)：162.048 × 121.536 (H×V)
Bezel Area(mm)：165.4 × 124.7 (H×V)
Luminance：300 (Typ.)(cd/m2)
Viewing Angle：60/60/70/70 (Typ.)(CR≥10)
Good View at：3 o'clock
Color Depth：262K/16.2M 50% (CIE1931)
Mass： 170g (Typ.)
Refresh Rate：60Hz

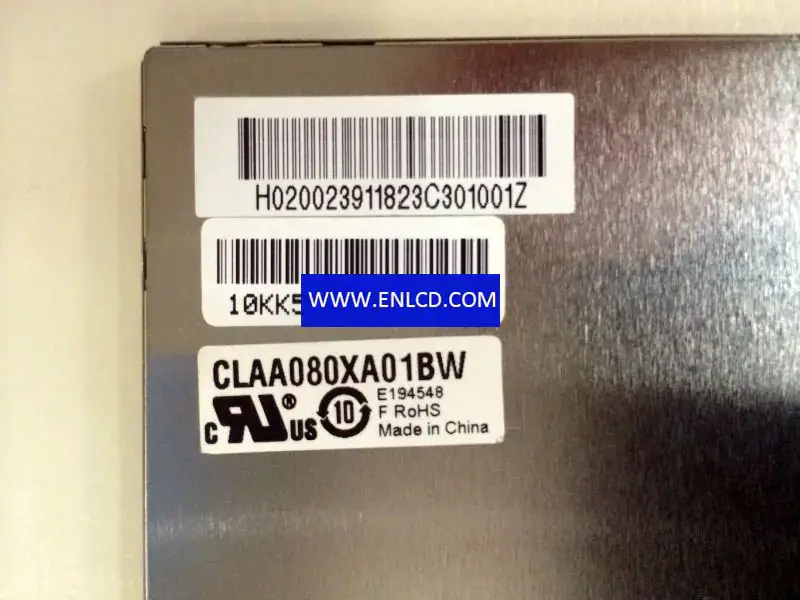

Model Name：CLAA080XA01BW
Screen Type：LCM ，a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 183 × 141 × 3.7 (H×V×D)
Treatment：Antiglare， Hard coating (3H)
Contrast Ratio： 700 : 1 (Typ.) (TM)
Work Mode： TN， Normally White， Transmissive
Response：20 (Typ.)(Tr+Td) ms
Backlight：4S7P WLED ， 20K hours ， No Driver
Used for： Digital Photo Frame, Pad & Tablet,
Touchscreen：Without
Signal Type：LVDS (1 ch， 6/8-bit)， FPC， 60 pins
Voltage Supply： 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C; Vibration Level: 2.9G (28.4 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
