Brand：DLC
Diagonal Size：4.3 inch
Pixel Format：480(RGB)×272[WQVGA]
Active Area：95.04(H)×53.856(V) mm
Bezel Area：98.9(H)×57.7(V) mm
Luminance：520 cd/m2 (Typ.)
View Direction：6 o'clock
Viewing Angle：70/70/70/70 (Typ.)(CR≥10)
Support Color：16.7M 50% (CIE1931)
Weight：-
Frame Rate： 60Hz
Model：DLC0430LZG-8
Type：a-Si TFT-LCD ， LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 105.5(H)×67.2(V)×3.2(D)mm
Treatment：-
Contrast Ratio： 500:1 (Typ.) (TM)
Response Time：20 (Typ.)(Tr+Td)
Operating Mode： TN， Normally White， Transmissive
Light Source： WLED [5S2P] ， 30K hours ， W/O Driver
Designed For： Portable Navigation, Pocket TV, MP4 PMP, Automotive Display, Industrial Application,
Touch Panel：Without

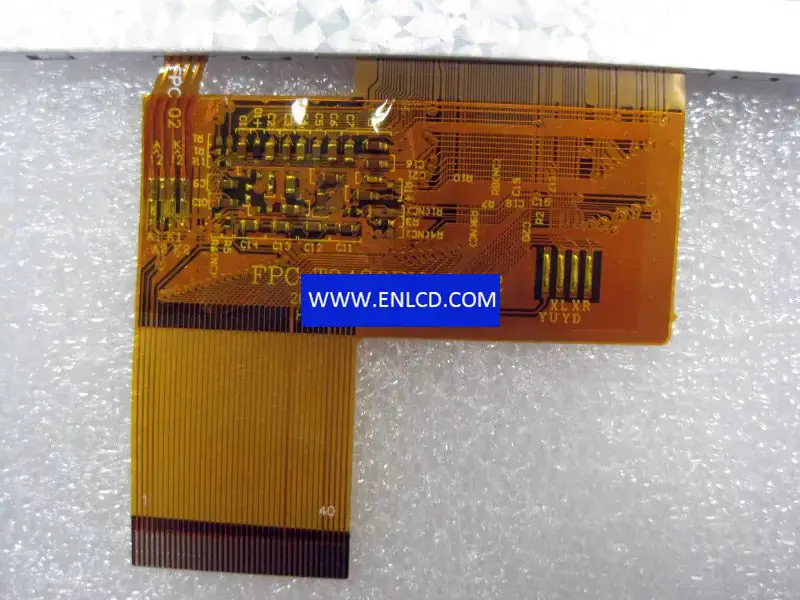

Interface Type： 40 pinsParallel RGB (1 ch， 8-bit)， FPC
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
