Innolux N141I3-L01 LCD panel

Brand：CMO
Diagonal Size：14.1 inch
Pixel Format：1280(RGB)×800[WXGA]
Active Area：303.36(H)×189.6(V) mm
Bezel Area：306.76(H)×193.0(V) mm
Luminance：220 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Support Color：262K
Form Style：Wedge (PCBA Bent, Depth ≥5.2mm)
Frame Rate： 60Hz
Model：N141I3-L01 (CMO1424) 13 Compatible
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 319.5(H)×205.5(V)×5.5(D)mm
Treatment：Antiglare (Haze 26%), Hard coating (3H)
Contrast Ratio： 450:1 (Typ.) (TM)
Response Time：3/7 (Typ.)(Tr/Td)
Operating Mode： TN, Normally White, Transmissive
Light Source： CCFL [1 pcs] , 15K hours , W/O Driver
Designed For： Laptop,
Touch Panel：Without

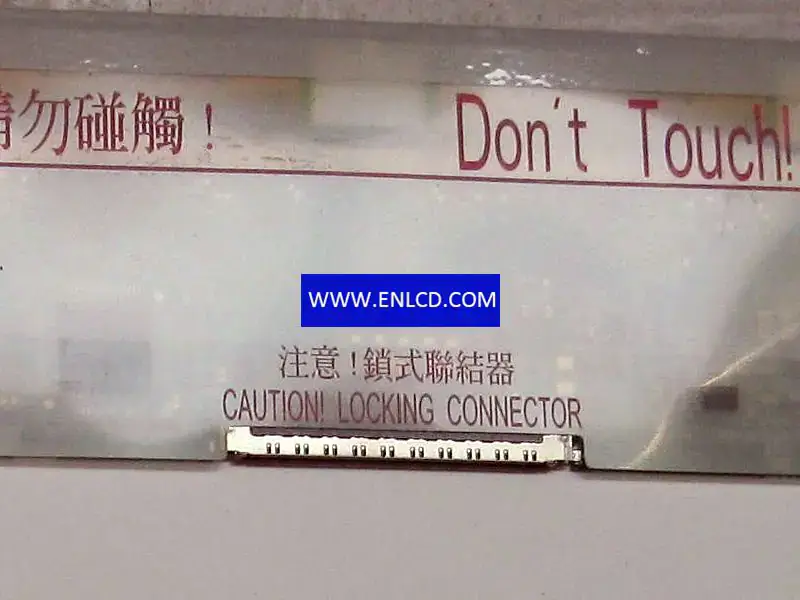

Interface Type： 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
