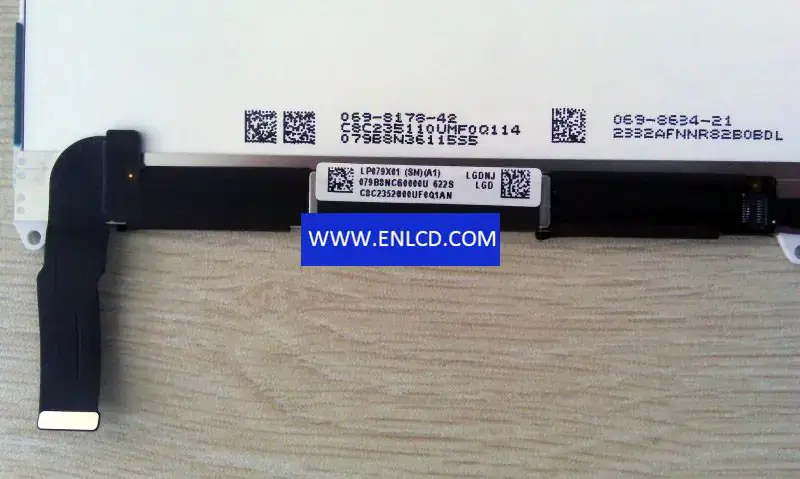

LG Display LP079X01-SMA1 LCD panel

Brand：LG Display
Model：LP079X01-SMA1
Diagonal Size：7.9 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：768(RGB)×1024[XGA]
Configuration：RGB Vertical Stripe
Active Area：119.808(H)×159.744(V) mm
Outline Dim.：129(H)×171.07(V)×4.81(D) mm
Bezel Area：124.32(H)×164.1(V) mm
Treatment：Glare (Haze 0%), Hard coating
Luminance：425 cd/m2 (Typ.)
Contrast Ratio：900:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：17 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：AH-IPS, Normally Black, Transmissive
Support Color：262K
Light Source：WLED[6 strings], 10K hours, W/O Driver
Weight： 70.0g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 32 pinsMIPI (4 data lanes), Connector
Power Supply：3.6V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
