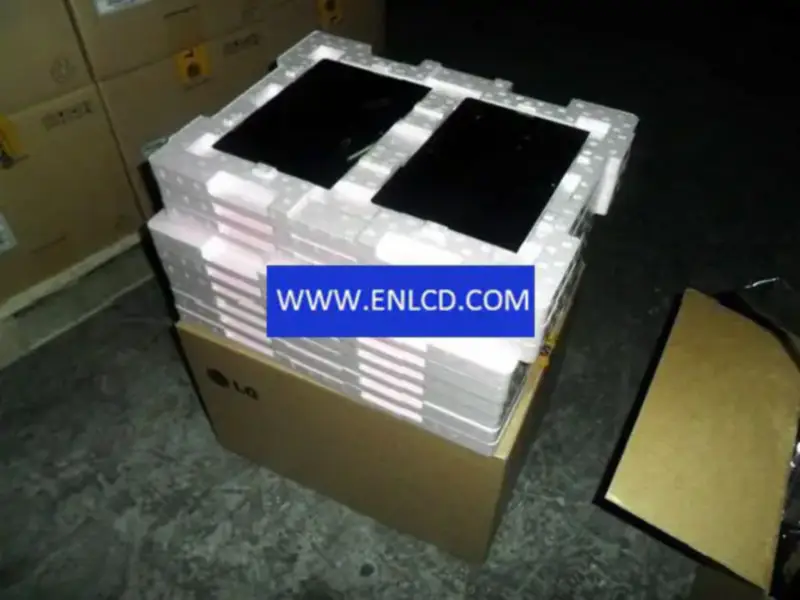

LG Display LP094WX1-SLA2 LCD panel

Brand：LG Display
Model：LP094WX1-SLA2
Diagonal Size：9.4 inch
Type：a-Si TFT-LCD, Assembly
Pixel Format：1280(RGB)×800[WXGA]
Configuration： RGB Vertical Stripe
Active Area：201.6(H)×126(V) mm
Outline Dim.：237.7(H)×161.45(V)×6.5(D) mm
Bezel Area：203.92(H)×128.32(V) mm
Treatment：Anti-Scatter
Luminance：320 cd/m2 (Typ.)
Contrast Ratio： 600:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：35 (Typ.)(Tr+Td)
Viewing Angle：80/80/80/80 (Min.)(CR≥10)
Operating Mode：IPS, Normally Black, Transmissive
Support Color：262K 50%(CIE1931)
Light Source：WLED[6 strings], 15K hours, W/O Driver
Weight： 235g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Embeded (Projected Capacitive Touch)
Interface Type： 39 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
