Manufacturer：NEC

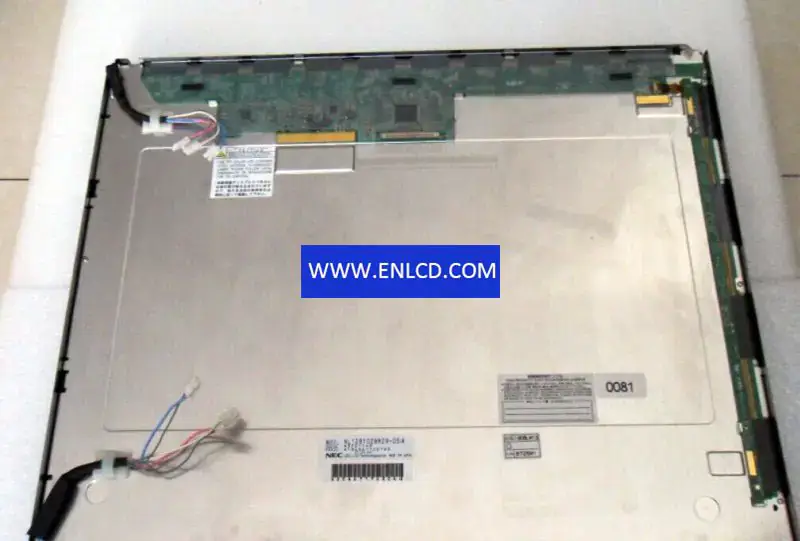

Model Name：NL128102BM29-05A
Screen Size：19.0 inch
Screen Type：LCM ，a-Si TFT-LCD
Pixel Number：1280(LCR)×1024 (SXGA)
Arrangement：LCR Vertical Stripe
Active Area(mm)： 376.32 × 301.056 (H×V)
Outline(mm)：404.2 × 330× 25.55 (H×V×D)
Bezel Area(mm)： 380.3 × 305.1 (H×V)
Treatment： Antiglare， Hard coating (2H)
Luminance：1000 cd/m2 (Typ.)
Contrast Ratio：900 : 1 (Typ.) (TM)
Viewing Angle： 85/85/85/85 (Typ.)(CR≥10)
Response： 18/17 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： SA-SFT， Normally Black， Transmissive
Color Depth：Grayscale
Backlight：6 pcsCCFL， No Driver
Mass： 2.90/3.10Kgs (Typ./Max.)
Used for： Medical Imaging,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (2 ch， 8-bit)， Connector， 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
