Panel Brand：BOE

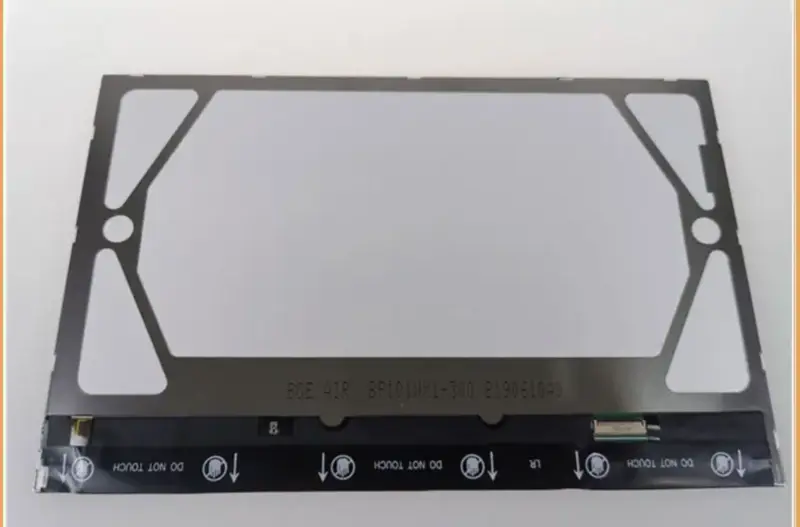

Panel Model：BP101WX1-3005 Compatible
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：216.96(W)×135.6(H) mm
Bezel Opening：-
Outline Size：228.21(W)×148.86(H)×4.59(D) mm
Surface：Glare (Haze 0%), Hard coating (3H), Antireflection
Brightness：450 cd/m2 (Typ.)
Contrast Ratio：900:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Display Mode：ADS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Display Colors：16.7M 53%(CIE1931)
Lamp Type：4 stringsWLED, 15K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 145g (Max.)
Application： Pad & Tablet,
Signal Interface： LVDS (1 ch, 8-bit), 45 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 65 °C ;Storage Temp.: -40 ~ 85 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
