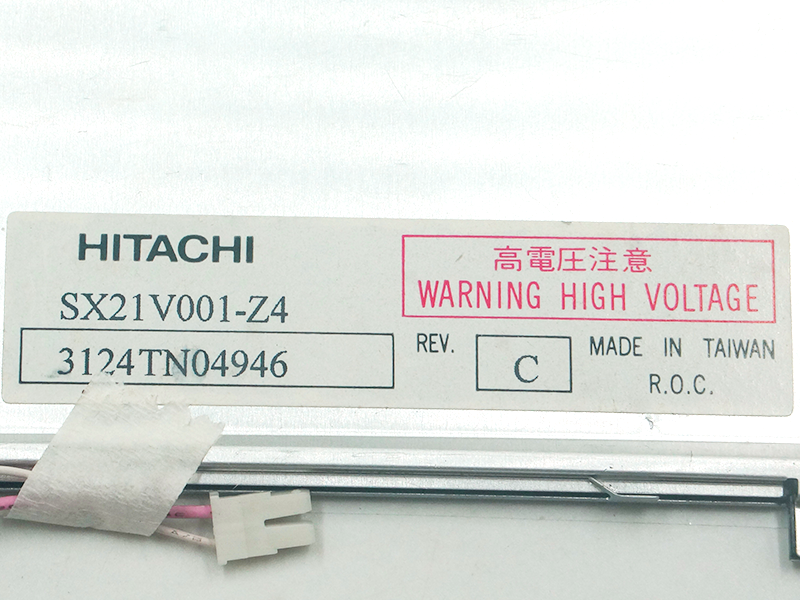

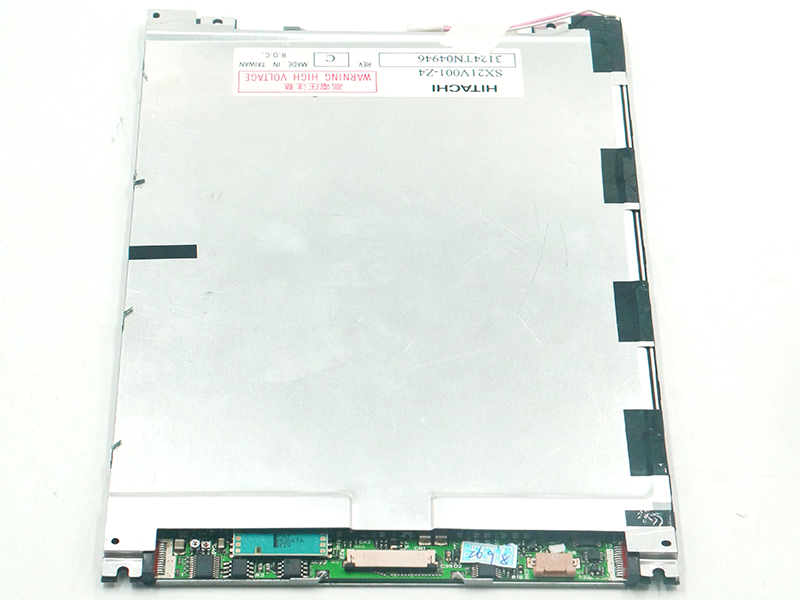

Model P/N:SX21V001-Z4
Brand:HITACHI
Diagonal Size:8.2"
Resolution:640(RGB)×480, VGA 97PPI
Brightness:70 cd/m² (Typ.)
Contrast Ratio:50:1 (Typ.) (TM)
Viewing Angle:40 (Typ.)(CR≥2, Φ2-Φ1)
Panel Type:CSTN-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:167.02(W)×125.26(H) mm
Bezel Opening:172.0(W)×129.5(H) mm
Response Time:190/160 (Typ.)(Tr/Td)
Outline Size:203(W)×142.5(H) ×6.5(D) mm
Surface:Antiglare, Hard coating (3H)
Best View on:12 o'clock
Display Colors:Color 33% NTSC
Lamp Type:1 pcs CCFL , Without Driver
Frequency:120Hz
Touch Screen:Without
Panel Weight:230g (Typ.)
Application:Industrial
Signal Interface:Parallel Data (1ch, 8-bit) , 35 pins Connector
Input Voltage:3.3V (Typ.)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
