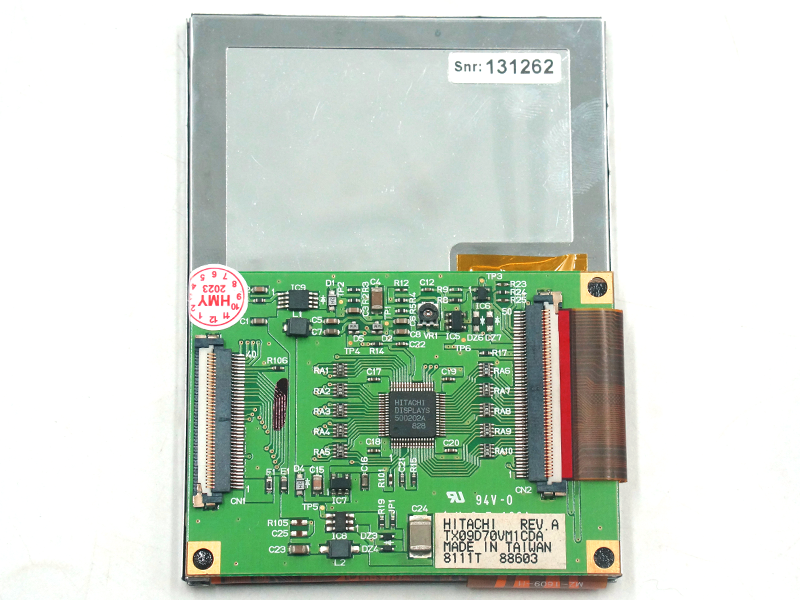

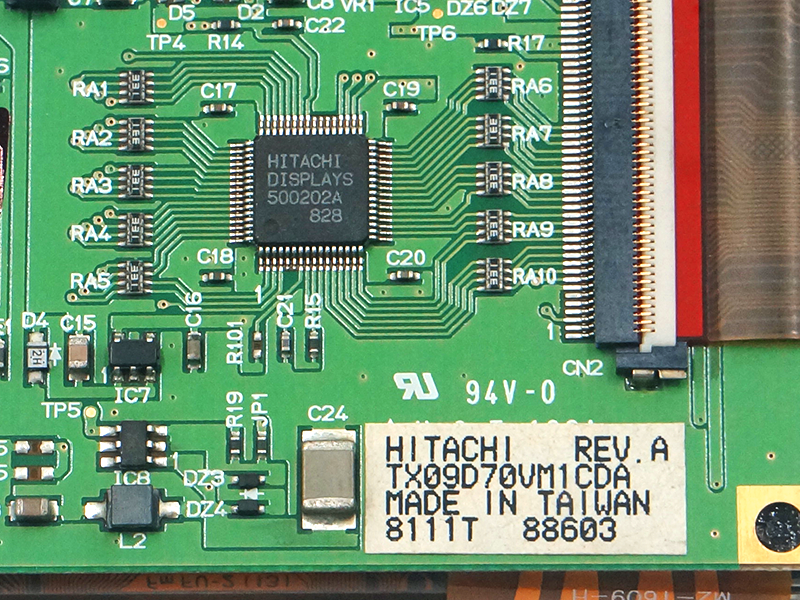

Model P/N:TX09D70VM1CDA
Brand:HITACHI
Diagonal Size:3.5"
Resolution:240(RGB)×320, QVGA 113PPI
Contrast Ratio:300:1 (Typ.) (TM)
Viewing Angle:70/70/80/60 (Typ.)(CR≥5)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:53.64(W)×71.52(H) mm
Bezel Opening:57.64(W)×75.52(H) mm
Outline Dim:64(H)×86(V) ×7.47(D) mm
Treatment:-
Luminance:400 cd/m² (Typ.)
View Direction:12 o'clock
Response Time:30 (Typ.)(Tr+Td)
Operating Mode:TN, Normally White, TMR
Support Color:262K 60% NTSC
Light Source:WLED , With LED Driver
Weight:40.0g (Typ.)
Designed For:Handheld & PDA
Frame Rate:60Hz
Touch Panel:Without
Interface Type:CMOS (1 ch, 6-bit) , 40 pins Connector
Power Supply:3.3V (Typ.)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
Description of your requirements:
