Panel Brand：BOE
Panel Size：14.0 inch
Resolution：1366(RGB)×768 , WXGA
Display Area：309.399(W)×173.952(H) mm
Outline Size：323.5(W)×192(H)×5.2(D) mm
Brightness：220 cd/m2 (Typ.)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Best View on：6 o’clock
Display Colors：262K60%(CIE1931)
Frequency： 60Hz
Shape Style：Wedge (PCBA Bent, Depth ≥5.2mm)

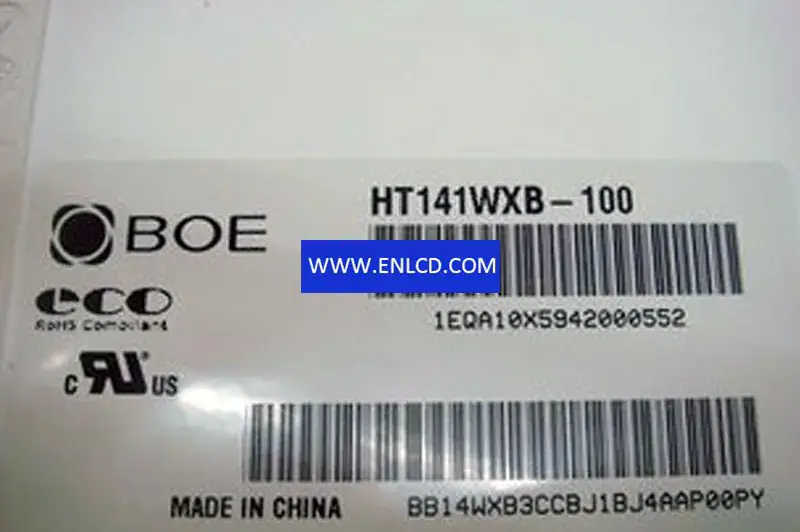

Panel Model：HT140WXB-100 (BOE0586)30 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：312.80(W)×177.36(H) mm
Surface：Glare (Haze 0%), Hard coating (3H)
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：8 (Typ.)(Tr+Td)
Lamp Type： 8S6P WLED , 10K hours , With LED Driver
Touch Screen：Without
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
