Panel Brand：Mitsubishi
Panel Size：8.4 inch
Resolution：1024(RGB)×768 , XGA
Display Area：170.496(W)×127.872(H) mm
Outline Size：199.5(W)×149(H) mm
Brightness：1000 cd/m2 (Typ.)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Best View on：6 o'clock
Display Colors：262K/16.7M40%(CIE1931)
Frequency： 60Hz
Weight：370g (Typ.)

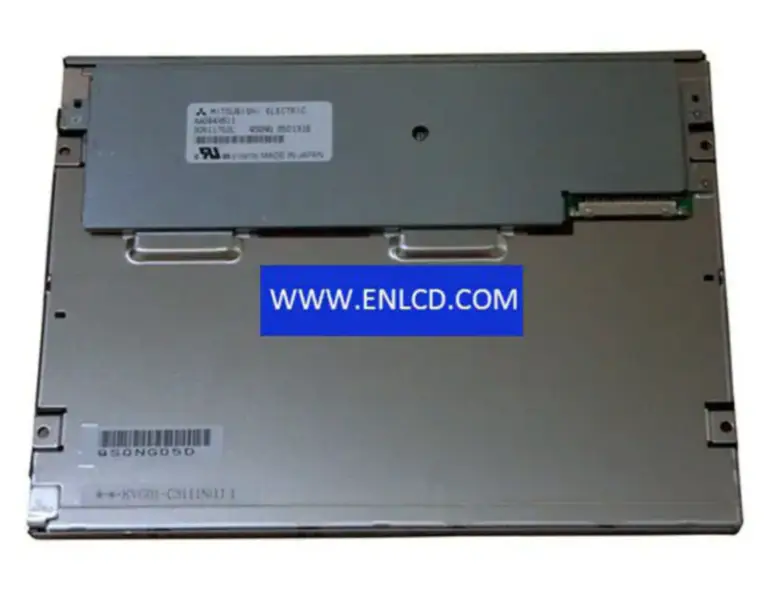

Panel Model：AA084XB11 1 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：174.9(W)×132.2(H) mm
Surface：Antiglare, Hard coating (3H)
Contrast Ratio：600:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：4/12 (Typ.)(Tr/Td)
Lamp Type： 2 strings WLED , 100K hours , Without Driver
Touch Screen：Without
Application： Industrial Application, Outdoor High Brightness,
Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
