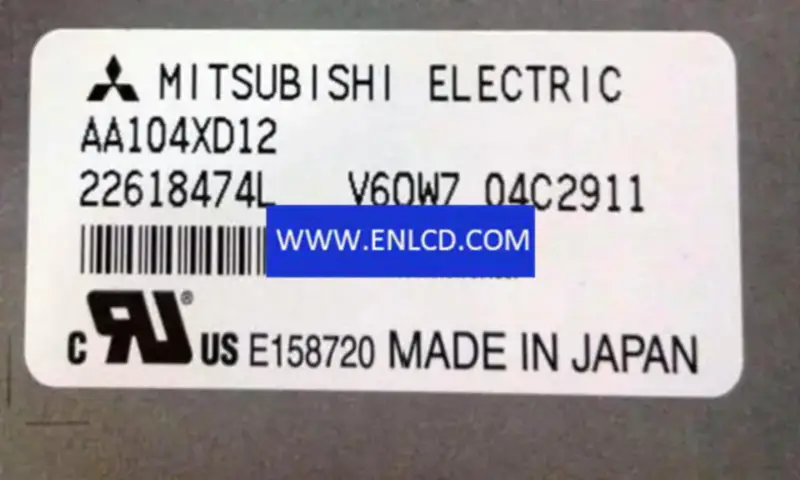

Panel Brand：Mitsubishi
Panel Model：AA104XD121 Compatible
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：210.4(W)×157.8(H) mm
Bezel Opening：215.4(W)×161.8(H) mm
Outline Size：230(W)×180.2(H)×11(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：1000 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
Viewing Angle：80/80/65/65 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o'clock
Response Time：4/12 (Typ.)(Tr/Td)
Display Colors：262K/16.7M 40%(CIE1931)
Lamp Type：4 stringsWLED, 100K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 520g (Typ.)
Application Industrial Application, Outdoor High Brightness,Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C
