Panel Brand：Innolux
Panel Size：5.0 inch
Resolution：480(RGB)×272 , WQVGA
Display Area：110.88(W)×62.832(H) mm
Outline Size：120.7(W)×75.8(H)×4.45(D) mm
Brightness：300 cd/m2 (Typ.)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Best View on：6 o’clock
Display Colors：16.7M50%(CIE1931)
Frequency： 60Hz
Weight：83.0g (Typ.)

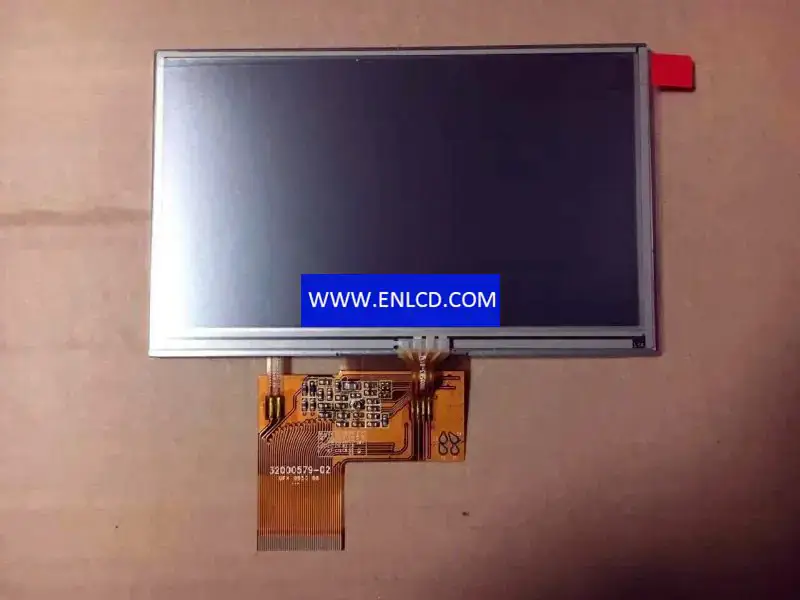

Panel Model：AT050TN33 1 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：113.90(W)×65.85(H) mm
Surface：Antiglare
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：10/15 (Typ.)(Tr/Td)
Lamp Type： 6S2P WLED , 20K hours , Without Driver
Touch Screen：Embeded (4-wire Resistive, F/G)
Application： Portable Navigation, Pocket TV, MP4 PMP,
Signal Interface： Parallel RGB (1 ch, 8-bit), 40 pins , FPC
Input Voltage： 3.3V (Typ.)(VCC)
Environment： Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
