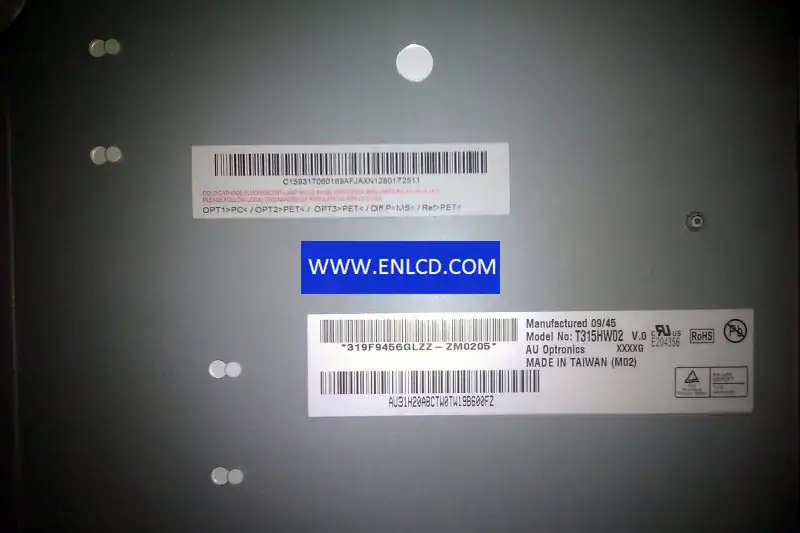

AUO T315HW02 V0 LCD panel replacement

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: AUO
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:




Brand:AUO
Model:T315HW02 V0
Diagonal Size:31.5 inch
Type:a-Si TFT-LCD, LCM
Pixel Format:1920(RGB)×1080[FHD]
Configuration:RGB Vertical Stripe
Active Area:698.4(H)×392.85(V) mm
Outline Dim.:760(H)×450(V)×46.5(D) mm
Bezel Area:703.6(H)×398.4(V) mm
Treatment:Antiglare (Haze 11%), Hard coating (3H)
Luminance:500 cd/m2 (Typ.)
Contrast Ratio:4000:1 (Typ.) (TM)
View Direction:Symmetry
Response Time:6.5 (Typ.)(G to G)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Operating Mode:AMVA3, Normally Black, Transmissive
Support Color:16.7M 72%(CIE1931)
Light Source:CCFL, 50K hours, With Inverter
Weight:6.50Kgs (Typ.)
Designed For: TV Sets,
Frame Rate: 60Hz
Touch Panel:Without
Interface Type: 51 pinsLVDS (2 ch, 8-bit), Connector
Power Supply:12.0V (Typ.)
Environment:Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
