Brand：TIANMA

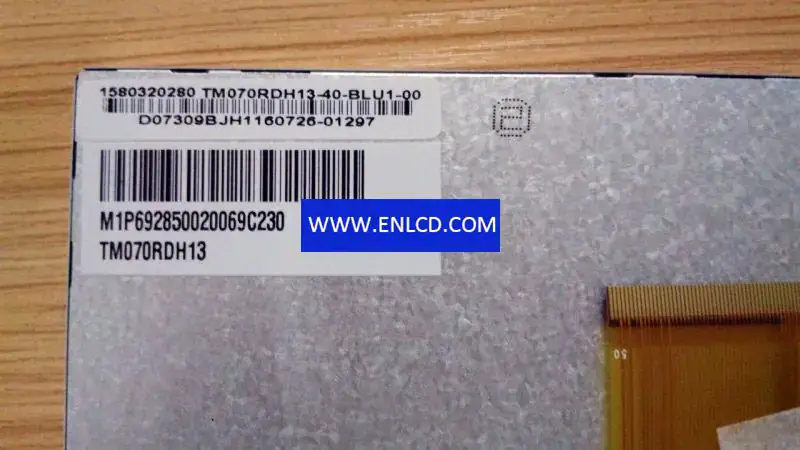

Model：TM070RDH131 Compatible
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：154.08(H)×85.92(V) mm
Outline Dim.：164.9(H)×100(V)×6(D) mm
Bezel Area：157.08(H)×89.39(V) mm
Treatment：Antiglare
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：12 o'clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：80/80/60/80 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K/16.7M 50%(CIE1931)
Light Source：WLED[3S6P], 20K hours, W/O Driver
Weight： 160g
Designed For： Digital Photo Frame, Portable DVD Player,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 50 pinsParallel RGB (1 ch, 6/8-bit), FPC
Power Supply：3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
