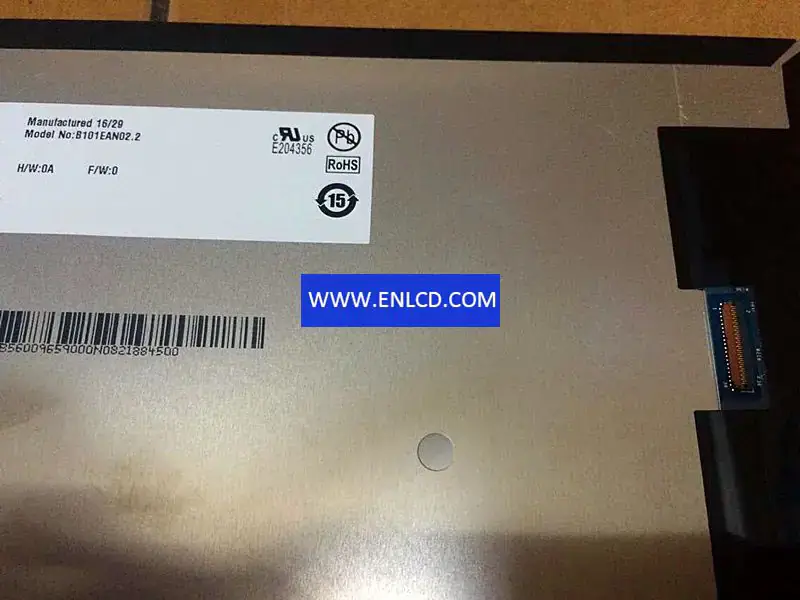

AUO B101EAN02.2 LCD panel replacement for Pad & Tablet

Panel Brand：AUO
Panel Model：B101EAN02.2
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×1280 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：135.36(W)×216.576(H) mm
Bezel Opening：-
Outline Size：142(W)×228.5(H) mm
Surface：Glare (Haze 0%), Antireflection
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：AHVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：30 (Typ.)(Tr+Td)
Display Colors：16.7M 60%(CIE1931)
Lamp Type：WLED, 15K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 152g (Max.)
Application： Pad & Tablet,
Signal Interface： LVDS (1 ch, 8-bit), 39 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
