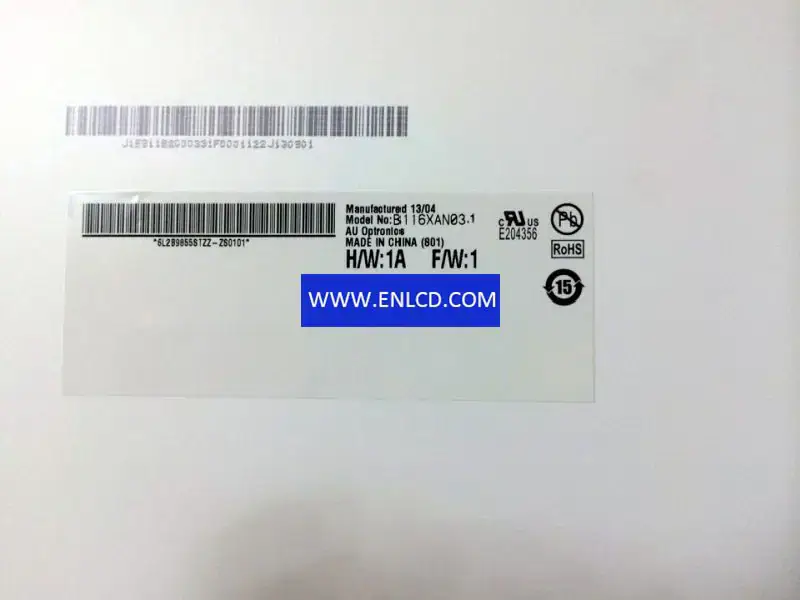

AUO B116XAN03.1 HW0A LCD panel

Brand：AUO
Model：B116XAN03.1 HW0A (AUO315C)
Diagonal Size：11.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：256.125(H)×144(V) mm
Outline Dim.：270.37(H)×159.79(V)×4.8(D) mm
Bezel Area：-
Treatment：Antiglare
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：AHVA, Normally Black, Transmissive
Support Color：262K 50%(CIE1931)
Light Source：WLED[10S3P], 10K hours, With LED Driver
Weight：170g (Max.)
Designed For： Pad & Tablet,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 40 pinsMIPI (4 data lanes), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
