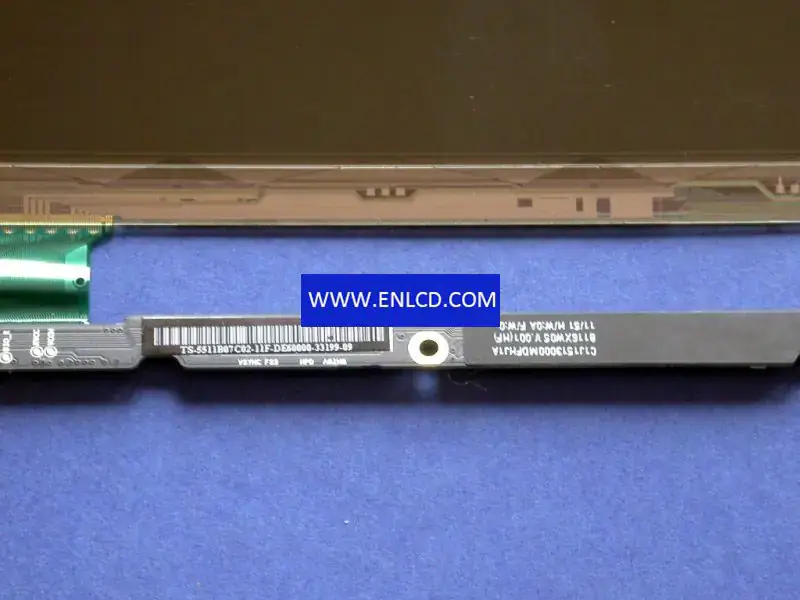

AUO B116XW05 V001 LCD panel

Panel Brand：AUO
Panel Model：B116XW05 V001 (APP9CF4)
Panel Size：11.6 inch
Panel Type：a-Si TFT-LCD, CELL
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：256.125(W)×144(H) mm
Bezel Opening：-
Outline Size：289.34(W)×155.9(H) mm
Surface：Glare (Haze 0%), Hard coating (4H)
Brightness：0 cd/m2
Contrast Ratio：700:1 (Typ.) (TM)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：-
Response Time：16 (Typ.)(Tr+Td)
Glass Depth：0.30+0.30 mm
Transmissivity：5.3% (Typ.)(with Polarizer)
Display Colors：262K 45%(CIE1931)
Lamp Type：No B/L
Frequency：60Hz
Touch Screen：Without
Shape Style： –
Application： Laptop, Netbook PC,
Signal Interface： eDP (1 Lane), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
