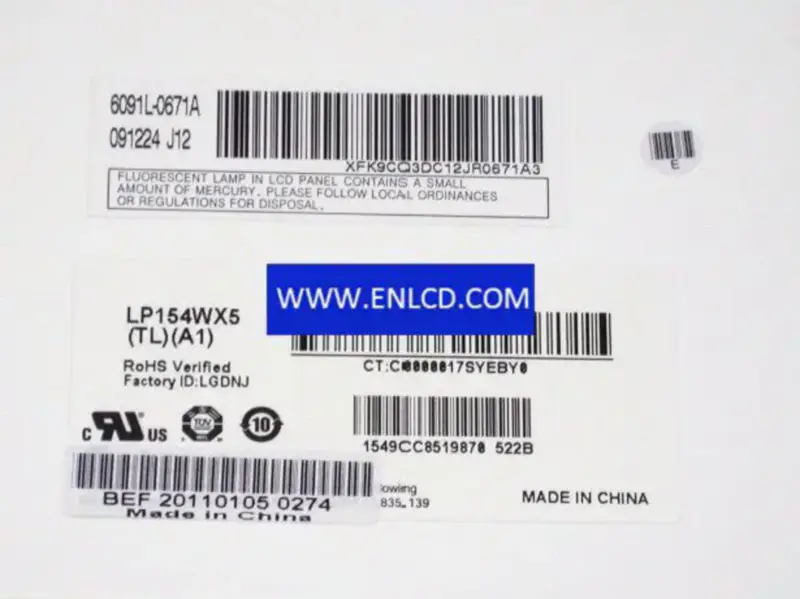

LG Display LP154WX5-TLA1 LCD panel

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: LG Display
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:




Brand:LG.Philips LCD
Model:LP154WX5-TLA1 (LEN4050) 27 Compatible
Diagonal Size:15.4 inch
Type:a-Si TFT-LCD , LCM
Pixel Format:1280(RGB)×800[WXGA]
Configuration:RGB Vertical Stripe
Active Area:331.2(H)×207(V) mm
Outline Dim.:344(H)×222(V)×6.5(D) mm
Bezel Area:335.0(H)×210.7(V) mm
Treatment:Glare (Haze 0%)
Luminance:200 cd/m2 (Typ.)
Contrast Ratio:600:1 (Typ.) (TM)
View Direction:6 o'clock
Response Time:16 (Typ.)(Tr+Td)
Viewing Angle:40/40/10/30 (Min.)(CR≥10)
Operating Mode:TN, Normally White, Transmissive
Support Color:262K
Light Source:CCFL[1 pcs], 15K hours, W/O Driver
Form Style: Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For: Laptop,
Frame Rate:60Hz
Touch Panel:Without
Interface Type: 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply:3.3V (Typ.)
Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
