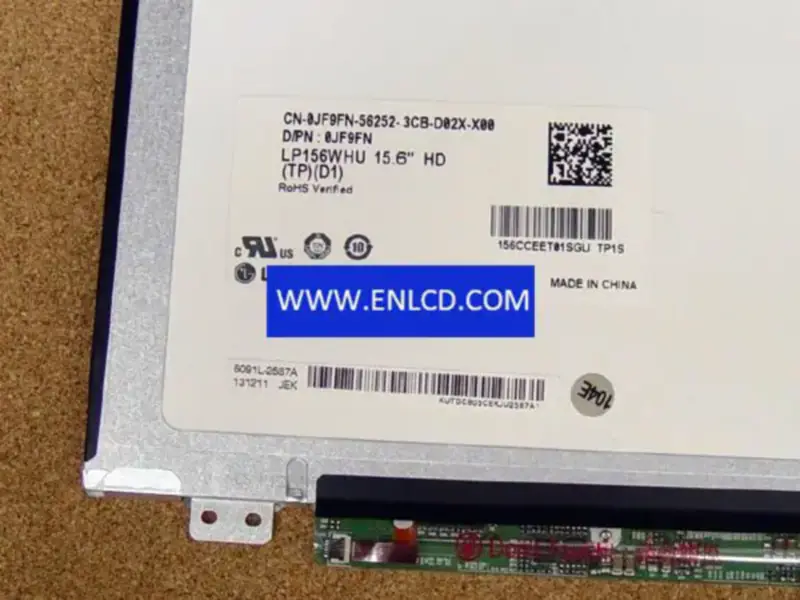

LG Display LP156WHU-TPD1 LCD panel

Panel Brand：LG Display
Panel Model：LP156WHU-TPD1 (LGD043D) 8 Compatible
Panel Size：15.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：344.232(W)×193.536(H) mm
Bezel Opening：347.5(W)×196.8(H) mm
Outline Size：359.5(W)×223.5(H)×3.2(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：350:1 (Typ.) (TM)
Viewing Angle：40/40/10/30 (Min.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：WLED, 15K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Slim (PCBA Flat, Depth ≤3.2mm)
Application： Laptop,
Signal Interface： eDP (1 Lane), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
