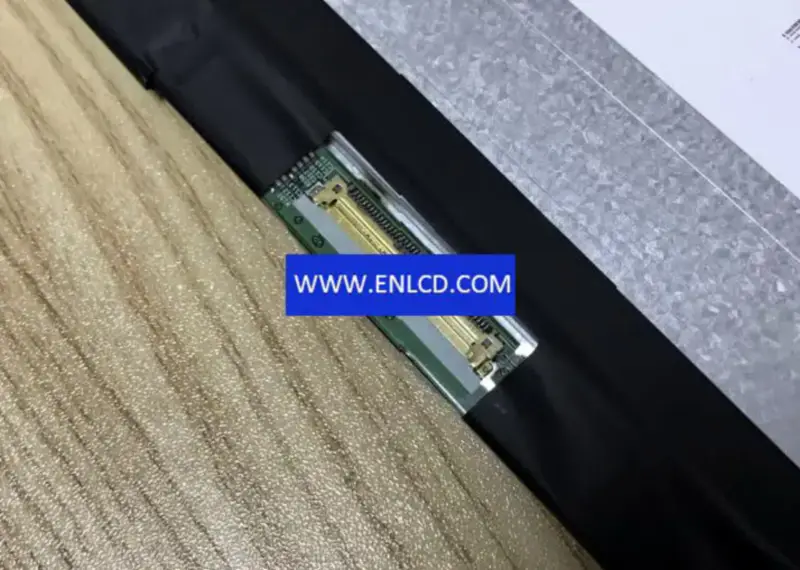

AUO B156HAT01.0 LCD panel replacement for Laptop

Brand：AUO
Model：B156HAT01.0 (AUO10ED)
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1920(RGB)×1080[FHD]
Configuration：RGB Vertical Stripe
Active Area：344.16(H)×193.59(V) mm
Outline Dim.：366.38(H)×225.31(V)×5.4(D) mm
Bezel Area：-
Treatment：Hard coating (7H)
Luminance：270 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：AHVA， Normally Black， Transmissive
Support Color：262K 72%(CIE1931)
Light Source：WLED， 15K hours， With LED Driver
Form Style： Flat (PCBA Flat， Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Embeded (Projected Capacitive Touch)
Interface Type： 40 pinseDP (2 Lanes)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
