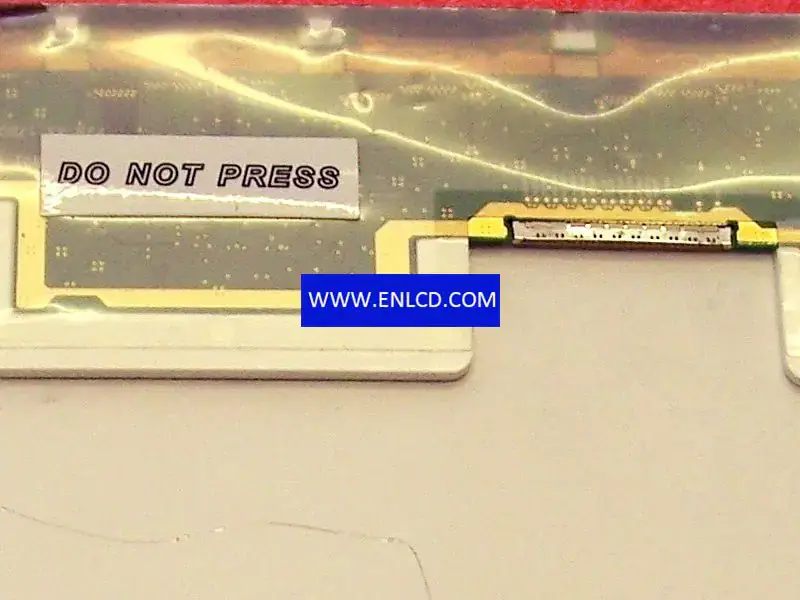

AUO B170PW02 V0 LCD panel for Laptop

Panel Brand：AUO
Panel Model：B170PW02 V03 Compatible
Panel Size：17.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1440(RGB)×900 , WXGA+
Pixel Format：RGB Vertical Stripe
Display Area：367.2(W)×229.5(H) mm
Bezel Opening：371.2(W)×233.5(H) mm
Outline Size：382.2(W)×246.8(H)×10(D) mm
Surface：Glare (Haze 0%), Antireflection
Brightness：385 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：-
Response Time：12/4 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：2 pcsCCFL, 10K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 30 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
