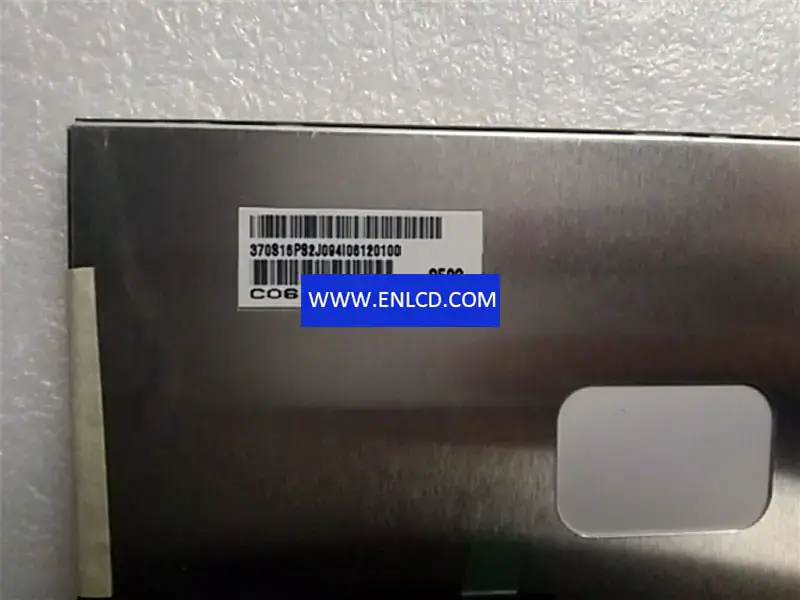

Brand：AUO
Model：C061FW01 V0
Diagonal Size：6.1 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：480(RGB)×234
Configuration：RGB Vertical Stripe
Active Area：136.08(H)×71.955(V) mm
Outline Dim.：149(H)×82.9(V)×6.1(D) mm
Bezel Area：138.2(H)×74.0(V) mm
Treatment：Antiglare (Haze 25%)
Luminance：600 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：15/20 (Typ.)(Tr/Td)
Viewing Angle：60/60/45/60 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：Full color 50%(CIE1931)
Light Source：WLED[7S1P]， 10K hours， W/O Driver
Weight： 104±10.4g
Designed For： Automotive Display,
Frame Rate：-
Touch Panel：Without
Interface Type： 30 pinsTFT Specific Analog RGB， FPC
Power Supply：5.0/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
