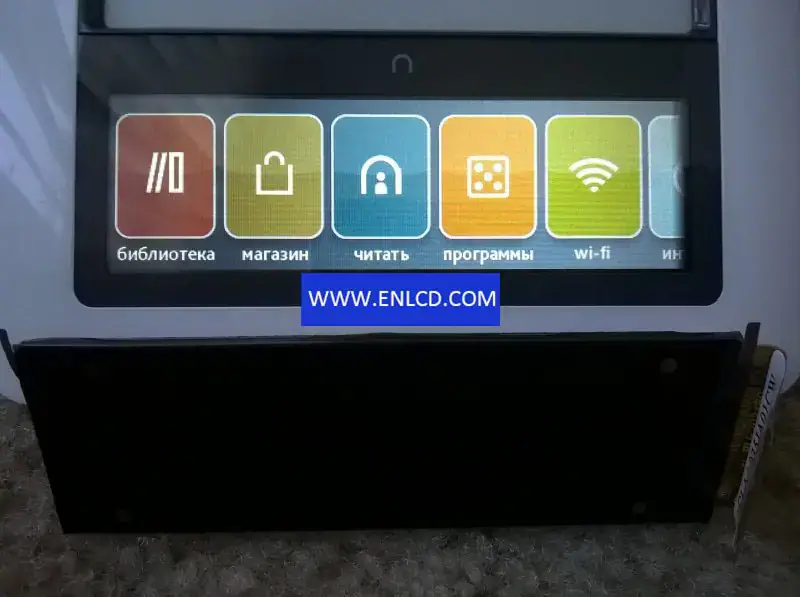

Panel Brand：CPT
Panel Model：CLAA035JA01CW
Panel Size：3.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：144(RGB)×480
Pixel Format：RGB Vertical Stripe
Display Area：25.92(W)×86.4(H) mm
Bezel Opening：28.52(W)×89.0(H) mm
Outline Size：33.9(W)×100.2(H) mm
Surface：Antiglare
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：25 (Typ.)(Tr+Td)
Display Colors：262K 50%(CIE1931)
Lamp Type：2S2PWLED, 10K hours, Without Driver
Frequency：-
Touch Screen：Without
Panel Weight： 17.6g (Typ.)
Application：
Signal Interface： Parallel RGB (1 ch, 6-bit) + SPI, 67 pins, FPC
Input Voltage：2.8/2.8/2.8V (Typ.)(VCC/VCI/IOVCC)
Environment：Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
