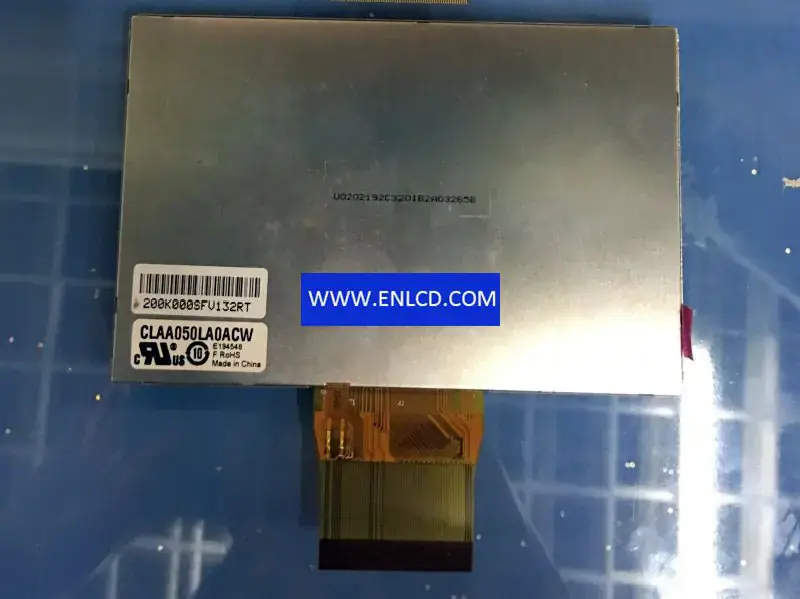

CLAA050LA0ACW CPT LCD panel

Brand：CPT
Model：CLAA050LA0ACW
Diagonal Size：5.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：108(H)×64.8(V) mm
Outline Dim.：118.5(H)×77.5(V)×3.1(D) mm
Bezel Area：110.6(H)×67.4(V) mm
Treatment：Hard coating
Luminance：500 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：16.2M 50%(CIE1931)
Light Source：WLED[3S6P], 10K hours, W/O Driver
Weight： 65.0g (Max.)
Designed For： Portable Navigation, Pocket TV, MP4 PMP, Automotive Display, Digital Photo Frame, Portable DVD Player, Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 60 pinsParallel RGB (1 ch, 8-bit), FPC
Power Supply：3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDDVGH/VGL)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s2)
