Brand：CPT

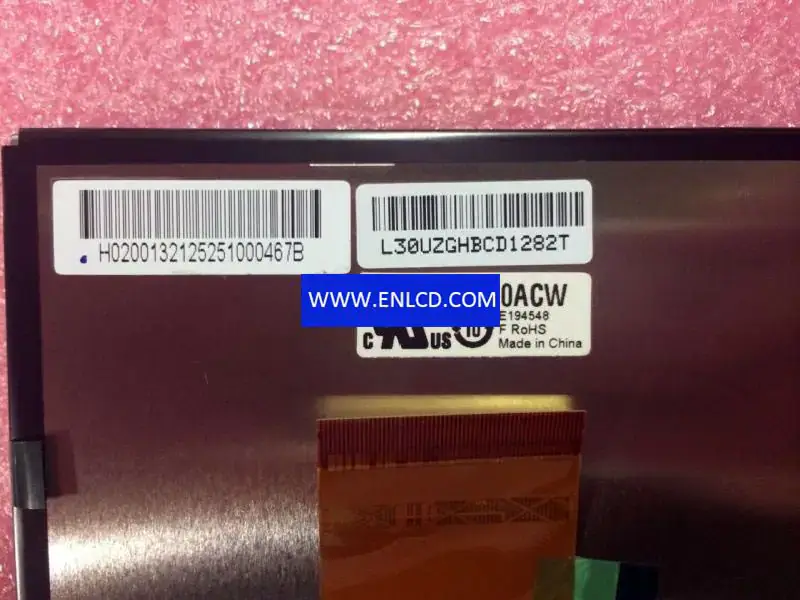

Model：CLAA069LA0ACW
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：156.6(H)×81.6(V) mm
Outline Dim.：167(H)×93.12(V)×6.77(D) mm
Bezel Area：159.0(H)×83.8(V) mm
Treatment：Antiglare
Luminance：500 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：20 (Typ.)(Tr+Td)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 70%(CIE1931)
Light Source：WLED[6S4P]， 15K hours， W/O Driver
Weight： 165g
Designed For： Automotive Display,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 60 pinsTTL (1 ch， 6-bit)， FPC
Power Supply：3.3/9.2/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s2)
