Manufacturer：CPT
Model Name：CLAA070LC0CCW
Screen Size：7.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：800(RGB)×480 (WVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 152.4 × 91.44 (H×V)
Outline(mm)：165 × 104× 5.3 (H×V×D)
Bezel Area(mm)： 155.3 × 94.44 (H×V)
Treatment： Antiglare, Hard coating (3H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：400 : 1 (Typ.) (TM)
Viewing Angle： 70/70/40/70 (Typ.)(CR≥10)
Response： 20 (Typ.)(Tr+Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K
Backlight：WLED, With LED Driver
Outline Shape： –
Used for： MID UMPC, Netbook PC,
Refresh Rate：60Hz
Touchscreen：Without

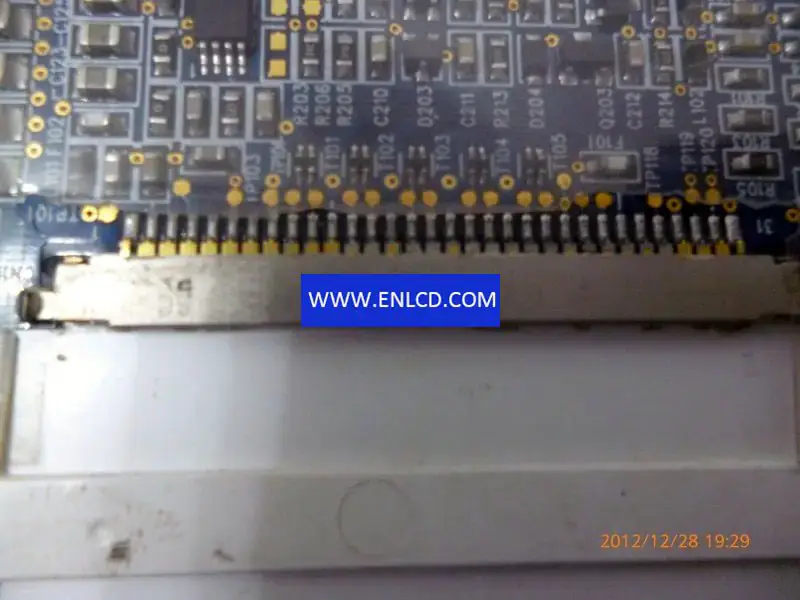

Signal Type：LVDS (1 ch, 6-bit), Connector, 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C; Vibration Level: 2.9G (28.4 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
