Panel Brand：CPT

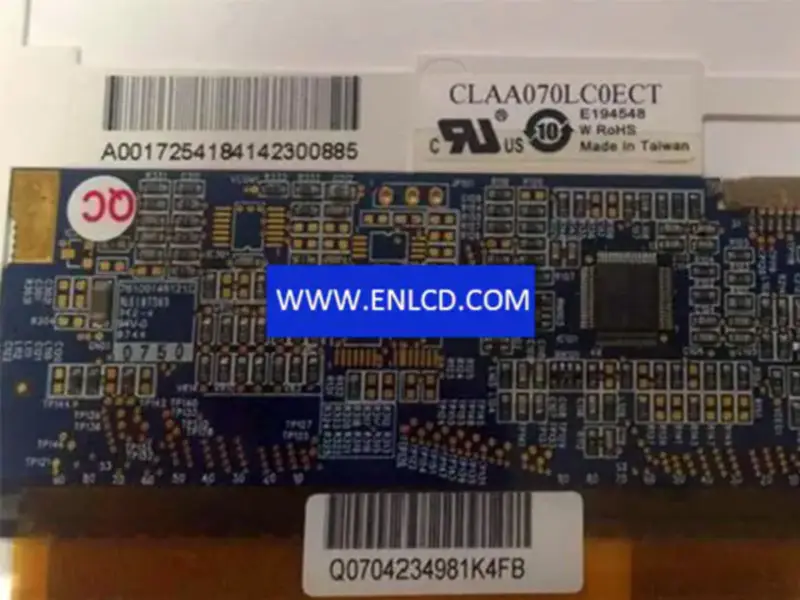

Panel Model：CLAA070LC0ECT
Panel Size：7.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×480 , WVGA
Pixel Format：RGB Vertical Stripe
Display Area：152.4(W)×91.44(H) mm
Bezel Opening：-
Outline Size：165(W)×104(H)×6.3(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：70/70/40/70 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：20 (Max.)(Tr+Td)
Display Colors：262K
Lamp Type：WLED, With LED Driver
Frequency：60Hz
Touch Screen：Embeded (4-wire Resistive)
Panel Weight： 145g (Typ.)
Application： MP4 PMP, MID UMPC,
Signal Interface： LVDS (1 ch, 6-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 2.9G (28.4 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
