Brand：CPT
Diagonal Size：7.0 inch
Pixel Format：1024(RGB)×600[WSVGA]
Active Area：154.214(H)×85.92(V) mm
Bezel Area：157.5(H)×89.2(V) mm
Luminance：350 cd/m2 (Typ.)
View Direction：Symmetry
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Support Color：16.7M 50% (CIE1931)
Weight：105g (Max.)
Frame Rate： 60Hz

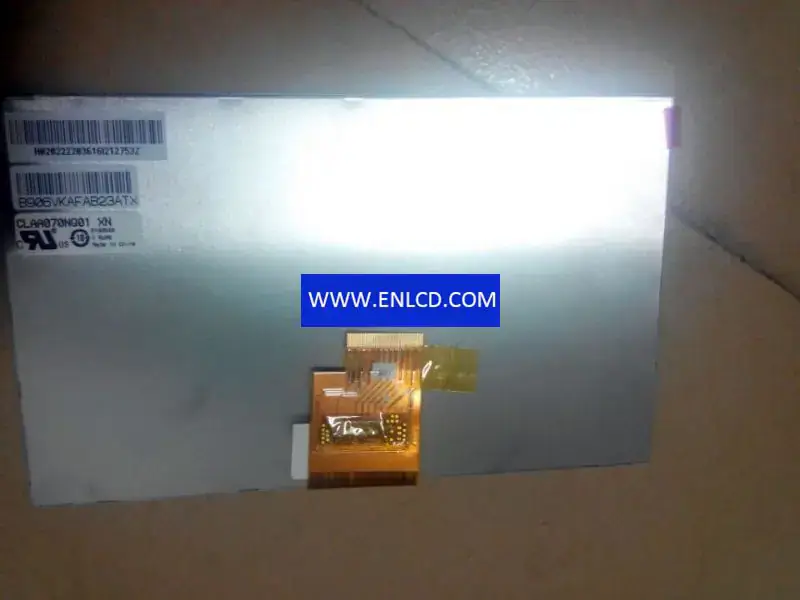

Model：CLAA070NQ01 XN
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 164.9(H)×100(V)mm
Treatment：Antiglare
Contrast Ratio： 800:1 (Typ.) (TM)
Response Time：30 (Typ.)(Tr+Td)
Operating Mode： HFFS, Normally Black, Transmissive
Light Source： WLED [6S4P] , 15K hours , W/O Driver
Designed For： Pad & Tablet,
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch, 8-bit), FPC
Power Supply： 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 2.9G (28.4 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
