Brand：CPT

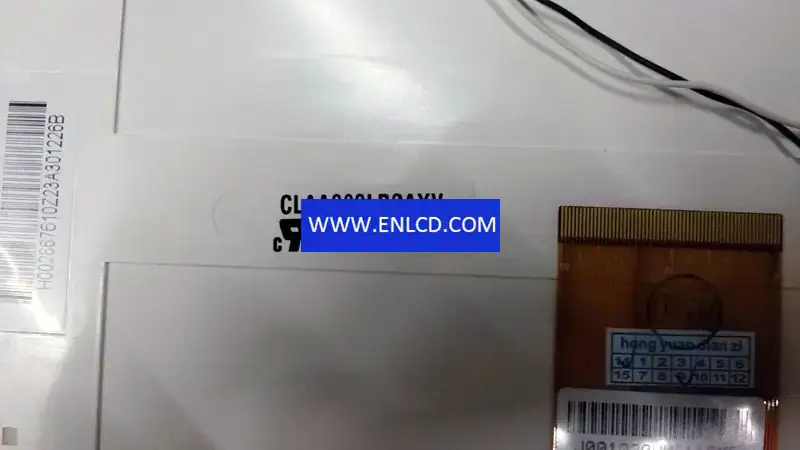

Model：CLAA080LB0AXV
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：800(RGB)×480[WVGA]
Configuration：RGB Vertical Stripe
Active Area：172.8(H)×103.68(V) mm
Outline Dim.：192.8(H)×116.9(V) mm
Bezel Area：176.0(H)×106.88(V) mm
Treatment：Antiglare， Hard coating (3H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：30 (Typ.)(Tr+Td)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Operating Mode：HFFS， Normally Black， Transmissive
Support Color：262K/16.2M 65%(CIE1931)
Light Source：WLED[4S8P]， 30K hours， W/O Driver
Weight： 190g (Typ.)
Designed For： Automotive Display,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 60 pinsParallel RGB (1 ch， 6/8-bit)， FPC
Power Supply：3.3/12.5/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
