Panel Brand：CPT
Panel Size：8.0 inch
Resolution：1280(RGB)×720 , WXGA
Display Area：177.024(W)×99.576(H) mm
Outline Size：192.8(W)×116.9(H)×8.4(D) mm
Brightness：600 cd/m2 (Typ.)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：262K/16.7M70%(CIE1931)
Frequency： 60Hz
Weight：190g (Typ.)

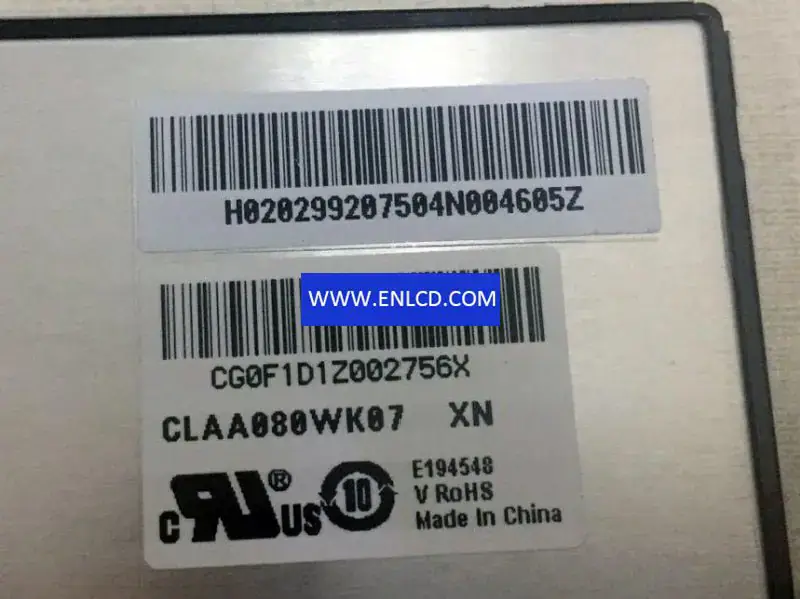

Panel Model：CLAA080WK07 XN
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：179.024(W)×101.576(H) mm
Surface：Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio：900:1 (Typ.) (TM)
Display Mode： HFFS, Normally Black, Transmissive
Response Time：25 (Typ.)(Tr+Td)
Lamp Type： 9S3P WLED , 50K hours , Without Driver
Touch Screen：Without
Application： Automotive Display, Industrial Application,
Signal Interface： LVDS (1 ch, 6/8-bit), 60 pins , FPC
Input Voltage： 3.3/12.4/22/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 85 °C
