Manufacturer：CPT

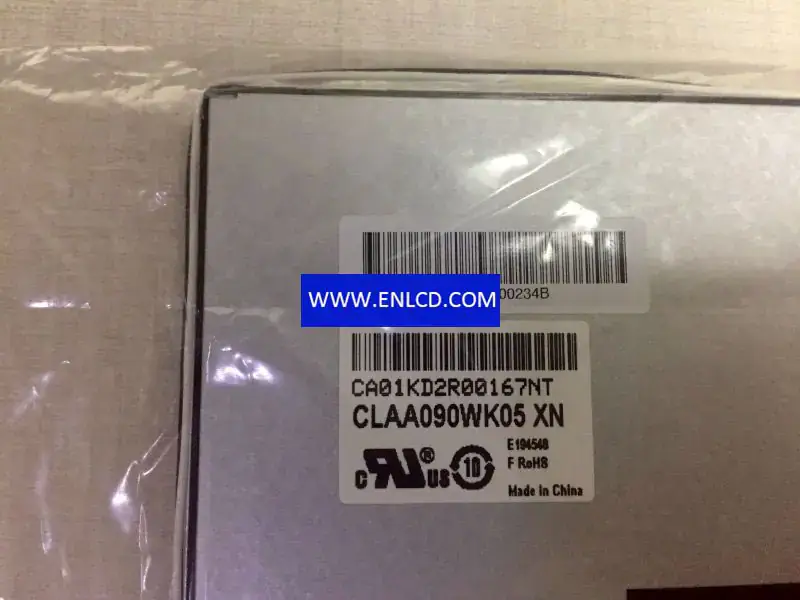

Model Name：CLAA090WK05XN
Screen Size：9.0 inch
Screen Type：LCM ，a-Si TFT-LCD
Pixel Number：1280(RGB)×720 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 198.912 × 111.888 (H×V)
Outline(mm)：210.7 × 124.1× 6.3 (H×V×D)
Bezel Area(mm)： 202.6 × 115.6 (H×V)
Treatment： Antiglare
Luminance：500 cd/m2 (Typ.)
Contrast Ratio：900 : 1 (Typ.) (TM)
Viewing Angle： 85/85/85/85 (Typ.)(CR≥10)
Response： 25 (Typ.)(Tr+Td) ms
Good View at： Symmetry
Work Mode： FFS， Normally Black， Transmissive
Color Depth：16.7M 72%(CIE1931)
Backlight：5S5PWLED， 20K hours， No Driver
Mass： 250g (Typ.)
Used for： Automotive Display, Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch， 8-bit)， FPC， 60 pins
Voltage Supply：3.3/12.4/22/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings：Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C; Vibration Level: 2.9G (28.4 m/s2)
