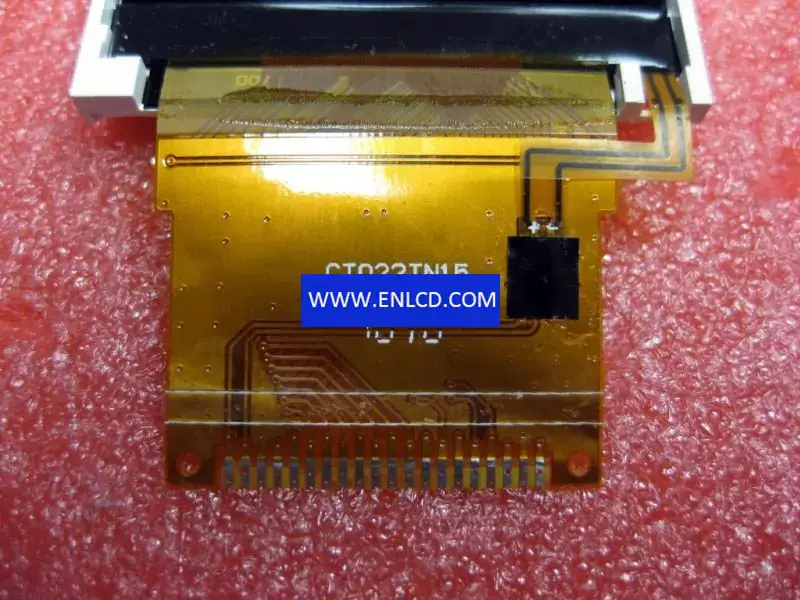

Innolux CT022TN15 LCD panel for Mobile Phone

Brand：Innolux
Diagonal Size：2.2 inch
Pixel Format：176(RGB)×220[QCIF+]
Active Area：34.848(H)×43.56(V) mm
Luminance：200 cd/m2 (Typ.)
View Direction：-
Viewing Angle：55/55/55/50 (Typ.)(CR≥10)
Support Color：65K/262K 50% (CIE1931)
Weight：9.10g
Frame Rate： 60Hz
Model：CT022TN15
Type：a-Si TFT-LCD ， LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 42.3(H)×57.5(V)×2.45(D)mm
Contrast Ratio： 300:1 (Typ.) (TM)
Response Time：30 (Typ.)(Tr+Td)
Operating Mode： TN， Normally White， Transmissive
Light Source： WLED [4S1P]， W/O Driver
Designed For： Mobile Phone,
Touch Panel：Without
Interface Type： 20 pinsCPU， FPC
Power Supply： 3.3/3.3V (Typ.)(VDD/VCI)
Environment： Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
