Manufacturer：DLC

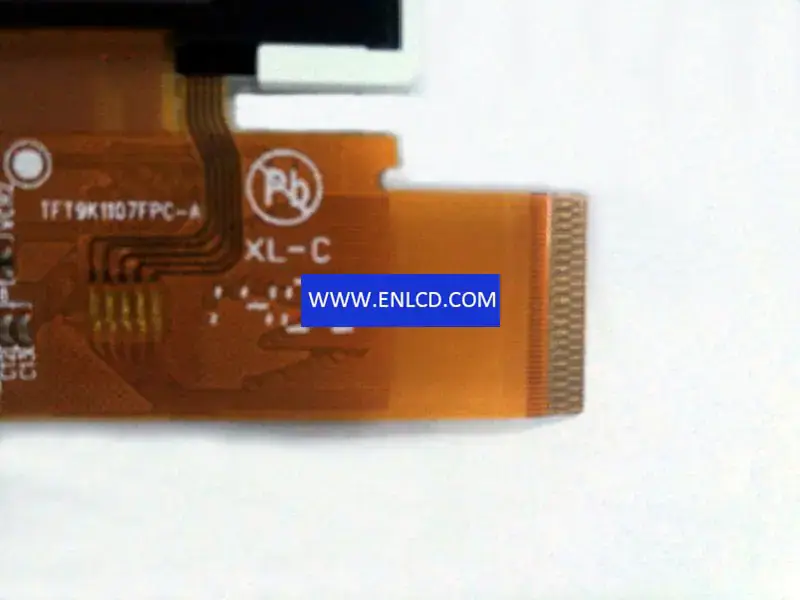

Model Name：DLC0200EUG
Screen Size：2.0 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：240(RGB)×320 (QVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 30.6 × 40.8 (H×V)
Outline(mm)：36.72 × 52.74× 3.4 (H×V×D)
Bezel Area(mm)： 32.60 × 42.80 (H×V)
Treatment： –
Luminance：90 cd/m2 (Typ.)
Contrast Ratio：75 : 1 (Typ.) (TM)
Viewing Angle： 58/27/80/40 (Typ.)(CR≥10)
Response： 33 (Typ.)(Tr+Td) ms
Good View at： –
Work Mode： TN, Normally White, Transflective
Color Depth：262K 30%(CIE1931)
Backlight：1S4PWLED, No Driver
Mass： –
Used for： Handheld & PDA,
Refresh Rate：-
Touchscreen：Without
Signal Type：CPU/RGB/SPI, FPC, 41 pins
Voltage Supply：(1.8/2.8)/2.8V (Typ.)(IOVCC/VCC)
Max. Ratings：Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 70 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
