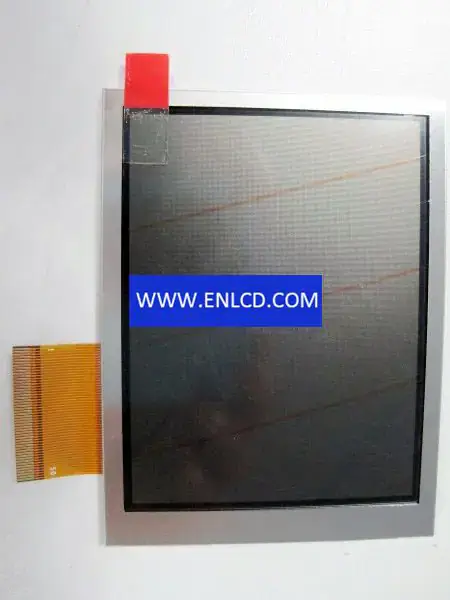

DLC0350BMG-1 LCD panel

Panel Brand：DLC
Panel Model：DLC0350BMG-1
Panel Size：3.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：240(RGB)×320 , QVGA
Pixel Format：RGB Vertical Stripe
Display Area：53.64(W)×71.52(H) mm
Bezel Opening：56.64(W)×74.52(H) mm
Outline Size：64(W)×85(H)×3.13(D) mm
Surface：Hard coating
Brightness：100 cd/m2 (Typ.)
Contrast Ratio：150:1 (Typ.) (TM) 6.5:1 (Typ.) (RF)
Viewing Angle：40/45/55/40 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transflective
Best View on：6 o’clock
Response Time：35 (Typ.)(Tr+Td)
Display Colors：262K
Lamp Type：6S1PWLED, 10K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： –
Application： Mobile Phone, Handheld & PDA,
Signal Interface： Parallel RGB (1 ch, 6-bit) + SPI, 50 pins, FPC
Input Voltage：2.8/15/-10V (Typ.)(VCC/VGH/VGL)
Environment：Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
