Manufacturer：DLC
Model Name：DLC0700EZG-1
Screen Size：7.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：800(RGB)×480 (WVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：154.08 × 85.92 (H×V)
Outline(mm)： 164.9 × 100× 6 (H×V×D)
Bezel Area(mm)：156.68 × 89.09 (H×V)
Treatment：-
Luminance：280 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle：70/70/50/70 (Typ.)(CR≥10)
Response：10/15 (Typ.)(Tr/Td) ms
Good View at：12 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K/16.7M 50%(CIE1931)
Backlight：3S6PWLED, 25K hours, No Driver
Mass： –
Used for： Digital Photo Frame, Portable DVD Player, Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without

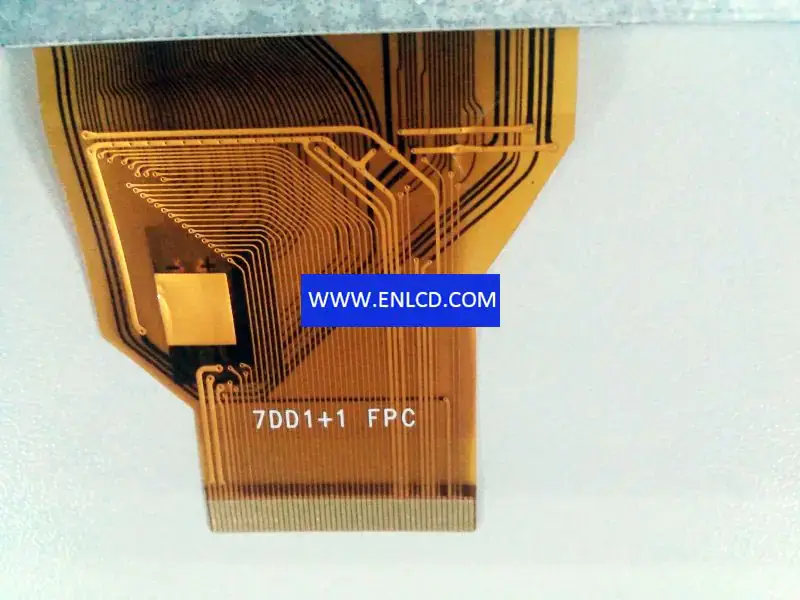

Signal Type： Parallel RGB (1 ch, 6/8-bit), FPC , 50 pins
Voltage Supply：3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings： Storage Temp.: -30 ~ 80 °COperating Temp.: -20 ~ 70 °C
