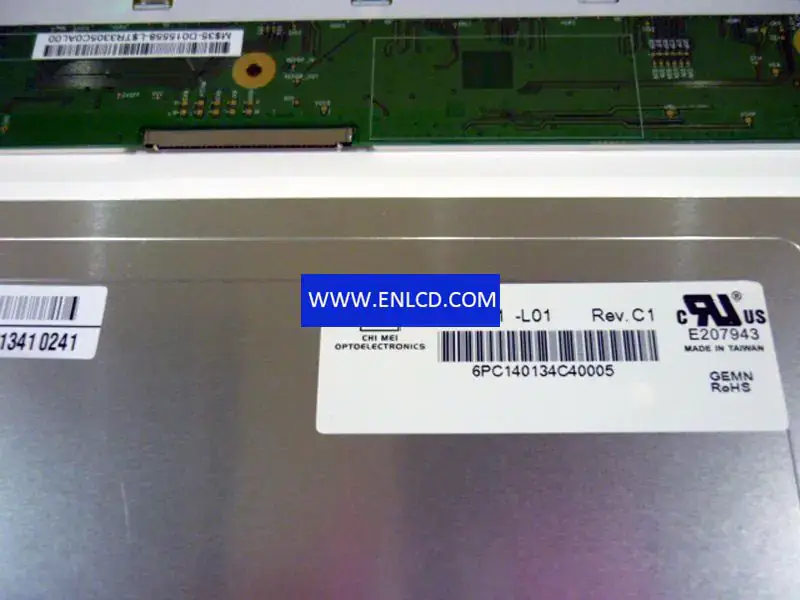

Panel Brand：Chimei Innolux
Panel Model：G104X1-L01
Panel Size：10.4 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：210.4(W)×157.8(H) mm
Bezel Opening：215.4(W)×161.8(H) mm
Outline Size：225.5(W)×176.3(H)×10.67(D) mm
Surface：Antiglare (Haze 25%), Hard coating (3H)
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：1200:1 (Typ.) (TM)
Viewing Angle：88/88/88/88 (Typ.)(CR≥10)
Display Mode：Super MVA, Normally Black, Transmissive
Best View on：Symmetry
Response Time：14/11 (Typ.)(Tr/Td)
Display Colors：16.2M 57%(CIE1931)
Lamp Type：2 pcsCCFL, 50K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 480g (Typ.)
Application Industrial Application, Gaming,Signal Interface： LVDS (1 ch, 8-bit), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -20 ~ 80 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
