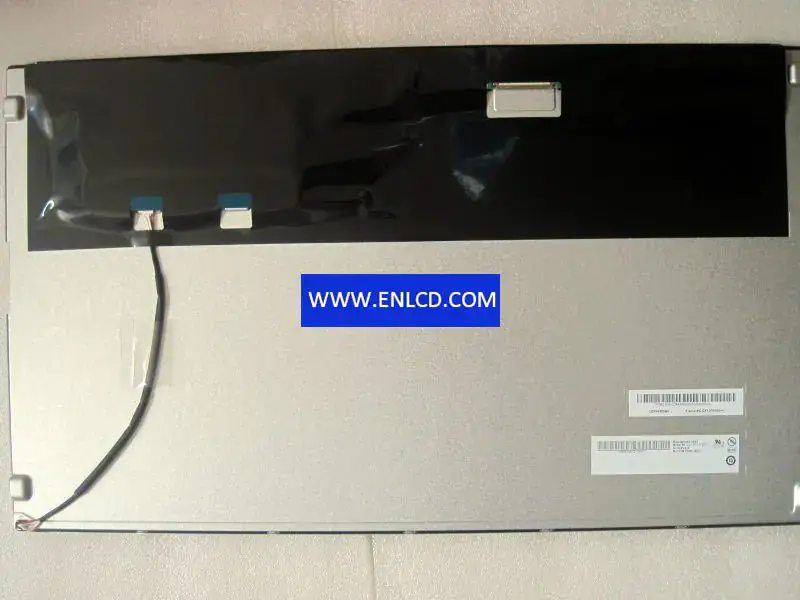

AUO G215HVN01.1 S03 LCD panel for Industrial Application

Manufacturer：AUO
Screen Size： 21.5 inch
Pixel Number： 1920(RGB)×1080(FHD)
Active Area(mm)：476.64 × 268.11 (H×V)
Bezel Area(mm)：479.84 × 271.31 (H×V)
Luminance：250 (Typ.)(cd/m2)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Good View at：Symmetry
Color Depth：16.7M 72% (CIE1931)
Mass： 1.95Kgs (Max.)
Refresh Rate：60Hz
Model Name：G215HVN01.1 S03
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 495.6 × 292.2 × 12.18 (H×V×D)
Treatment：Antiglare, Hard coating (3H)
Contrast Ratio： 5000 : 1 (Typ.) (TM)
Work Mode： AMVA3, Normally Black, Transmissive
Response：20/5 (Typ.)(Tr/Td) ms
Backlight：14S5P WLED , 30K hours , With LED Driver
Used for： Industrial Application,
Touchscreen：Without
Signal Type：LVDS (2 ch, 8-bit), Connector, 30 pins
Voltage Supply： 5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
