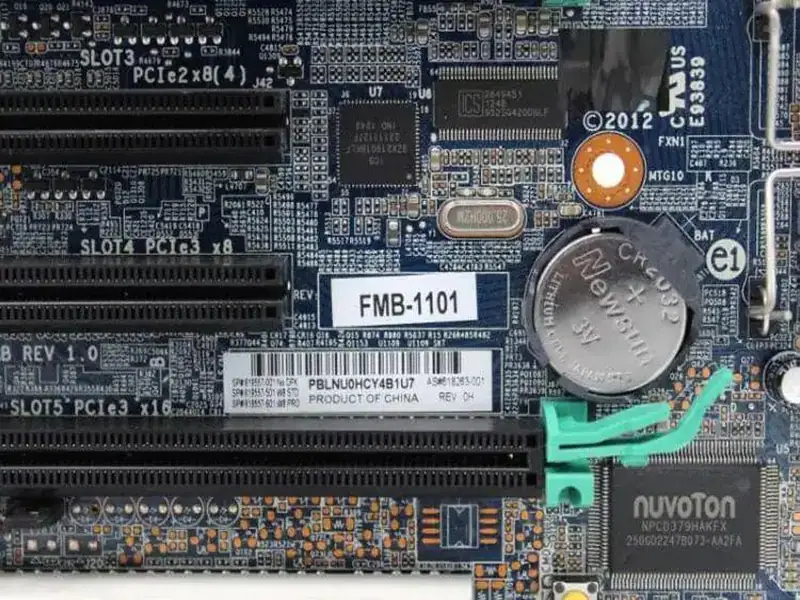

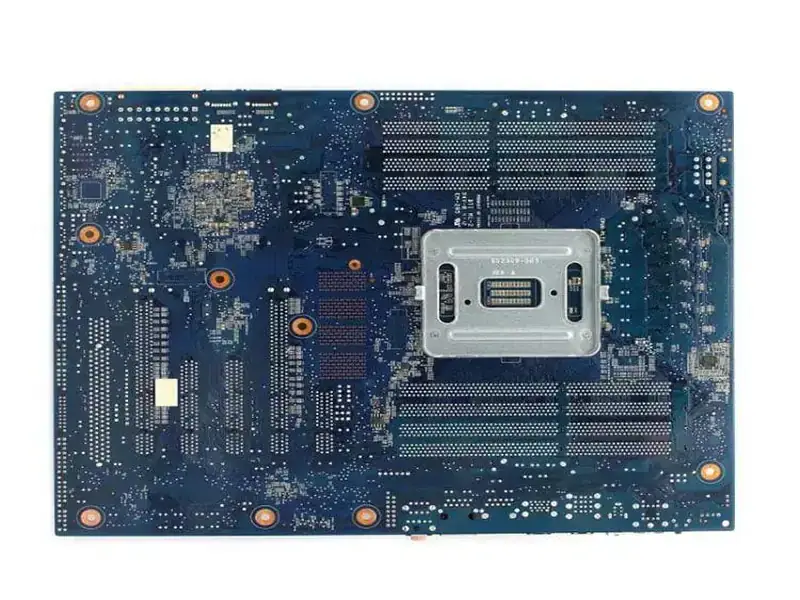

HP 619557-001 Motherboard

Specifications

MANUFACTURER: HP
PART NUMBER: 619557-001
COMPATIBILITY: HP Z420 WORKSTATION
PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 1 ) ONE PROCESSOR
SOCKET TYPE: FCLGA2011
PROCESSOR TYPE: INTEL XEON E5-1600 / INTEL XEON E5-2600 PROCESSOR FAMILY ( SELECTED MODELS )
MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 8 TOTAL MEMORY SLOTS ( 4 CHANNELS )
MEMORY TYPE: UP TO DDR3-1600
MEMORY SIZE CAPACITY: UP TO 64GB UDIMM ( ECC )
PCI INTERFACE DETAIL

NUMBER OF PCI SLOTS: 6 INTERFACES
– SLOT1 PCI-E 2.0 X4 ( FULL HEIGHT, HALF LENGTH )
– SLOT2 PCI-E 3.0 X16 ( FULL HEIGHT, FULL LENGTH / WITH EXTENDER )
– SLOT3 PCI-E 2.0 X4 ( X8 WIRED ) ( OPEN ENDED CONNECTOR WITH EXTENDER ) ( FULL HEIGHT, FULL LENGTH )
– SLOT4 PCI-E 3.0 X8 ( OPEN ENDED CONNECTOR WITH EXTENDER ) ( FULL HEIGHT, FULL LENGTH )
– SLOT5 PCI-E 3.0 X16 ( WITH EXTENDER ) ( FULL HEIGHT, FULL LENGTH )
– SLOT6 PCI 32 BIT / 33MHZ ( WITH EXTENDER ) ( FULL HEIGHT, FULL LENGTH )
