Manufacturer：Innolux

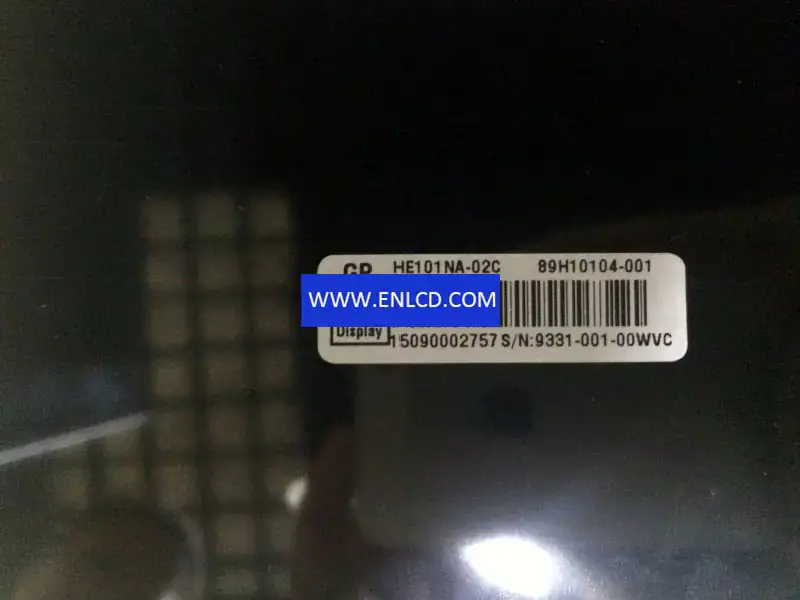

Model Name：HE101NA-02C
Screen Size：10.1 inch
Screen Type：CELL ,a-Si TFT-LCD
Pixel Number：1280(RGB)×800 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 216.96 × 135.6 (H×V)
Outline(mm)：224.21 × 145× 1.43 (H×V×D)
Bezel Area(mm)： –
Treatment： Clear
Luminance：0 cd/m2
Contrast Ratio：700 : 1 (Typ.) (TM)
Viewing Angle： 75/70/75/75 (Typ.)(CR≥10)
Response： 10/20 (Typ.)(Tr/Td) ms
Good View at： –
Work Mode： TN, Normally White, Transmissive
Glass Thickness：0.50+0.50 mm
Transmissivity：3.4% (Typ.)(with Polarizer)
Color Depth：16.7M
Backlight：No B/L, No Driver
Mass： 97.0g
Used for： Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：Parallel RGB (1 ch, 8-bit), Connector, 40 pins
Voltage Supply：3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C
