Panel Brand：BOE

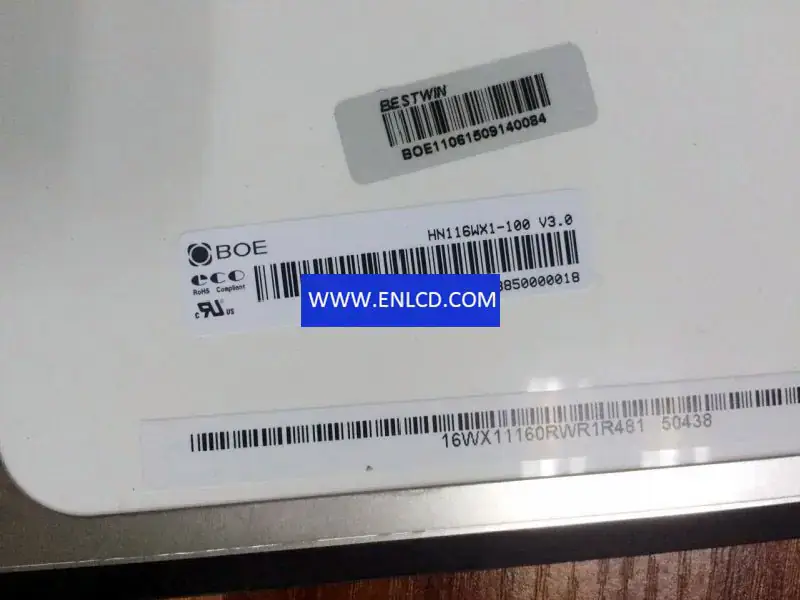

Panel Model：HN116WX1-100
Panel Size：11.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：256.125(W)×144(H) mm
Bezel Opening：259.1(W)×147.0(H) mm
Outline Size：268(W)×169.5(H)×5.3(D) mm
Surface：Glare (Haze 0%), Hard coating (3H)
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：ADS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：30 (Max.)(Tr+Td)
Display Colors：262K 50%(CIE1931)
Lamp Type：9S4PWLED, 15K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： eDP (2 Lanes), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 60 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
