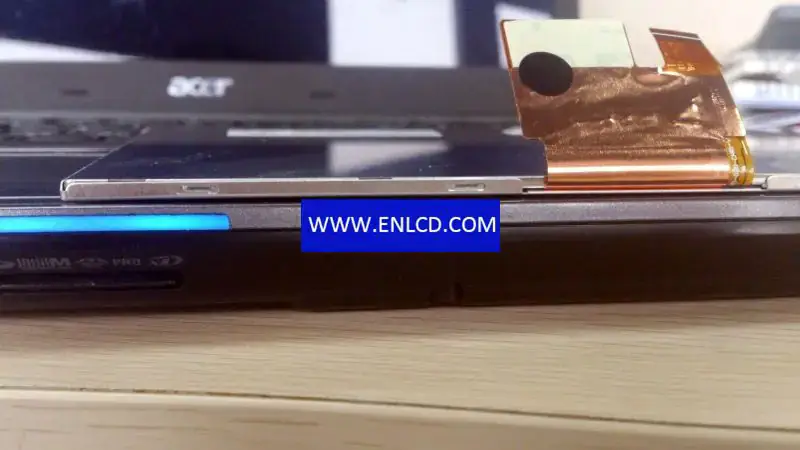

Panel Brand：HannStar
Panel Model：HSD070PFW3-D00
Panel Size：7.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×600 , WSVGA
Pixel Format：RGB Vertical Stripe
Display Area：153.6(W)×90(H) mm
Bezel Opening：157.1(W)×93.4(H) mm
Outline Size：167.25(W)×104.65(H)×3(D) mm
Surface：-
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：80/70/80/80 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：9 o’clock
Response Time：4/12 (Typ.)(Tr/Td)
Display Colors：16.2M 50%(CIE1931)
Lamp Type：4S5PWLED, 20K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 95.0/100g (Typ./Max.)
Application： MP4 PMP, MID UMPC, Pad & Tablet,
Signal Interface： LVDS (1 ch, 8-bit), 31 pins, FPC
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
