Manufacturer：HannStar

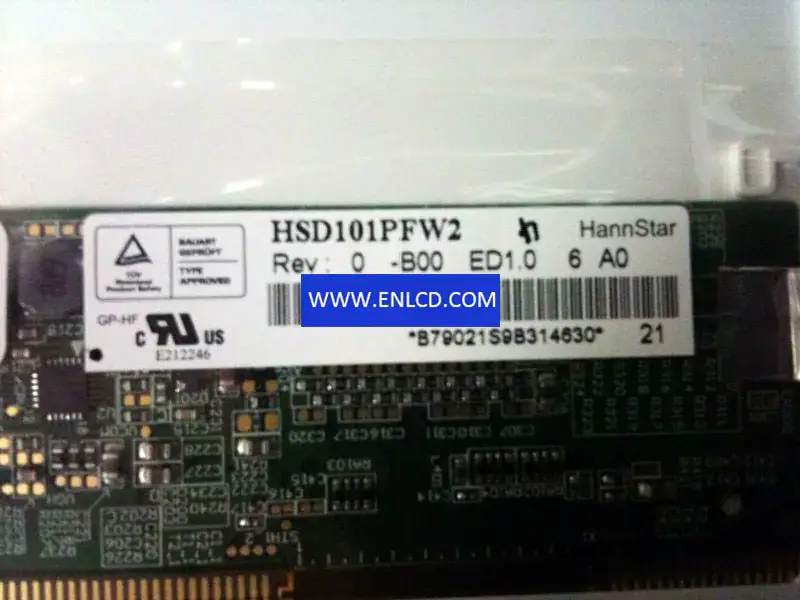

Model Name：HSD101PFW2-B009 Compatible
Screen Size：10.1 inch
Screen Type：LCM ，a-Si TFT-LCD
Pixel Number：1024(RGB)×600 (WSVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 222.72 × 125.28 (H×V)
Outline(mm)：235 × 143× 5.2 (H×V×D)
Bezel Area(mm)： 225.72 × 128.26 (H×V)
Treatment： Antiglare， Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 45/45/15/35 (Typ.)(CR≥10)
Response： 4/12 (Typ.)(Tr/Td) ms
Good View at： 6 o'clock
Work Mode： TN， Normally White， Transmissive
Color Depth：262K 50%(CIE1931)
Backlight：WLED， 10K hours， With LED Driver
Outline Shape： –
Used for： Digital Photo Frame, Portable DVD Player, Netbook PC,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch， 6-bit)， Connector， 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
