Panel Brand：BOE HYDIS

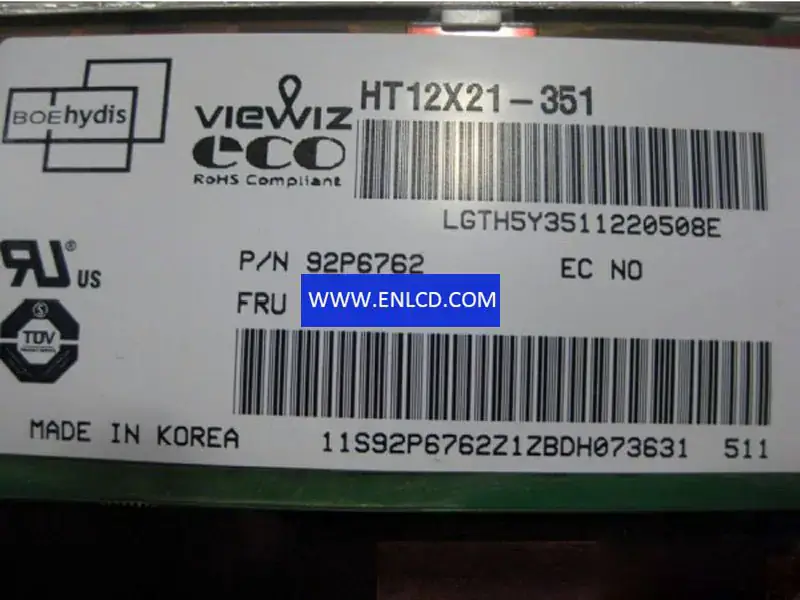

Panel Model：HT12X21-3512 Compatible
Panel Size：12.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768 , XGA
Pixel Format：RGB Vertical Stripe
Display Area：245.76(W)×184.32(H) mm
Bezel Opening：250.4(W)×189.0(H) mm
Outline Size：270(W)×199(H)×7(D) mm
Surface：Antiglare, Hard coating (6H), Antireflection
Brightness：165 cd/m2 (Typ.)
Contrast Ratio：450:1 (Typ.) (TM)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Display Mode：AFFS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：40 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：1 pcsCCFL, 12K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 305g (Typ.)
Application： Pad & Tablet,
Signal Interface： LVDS (1 ch, 6-bit), 20 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
