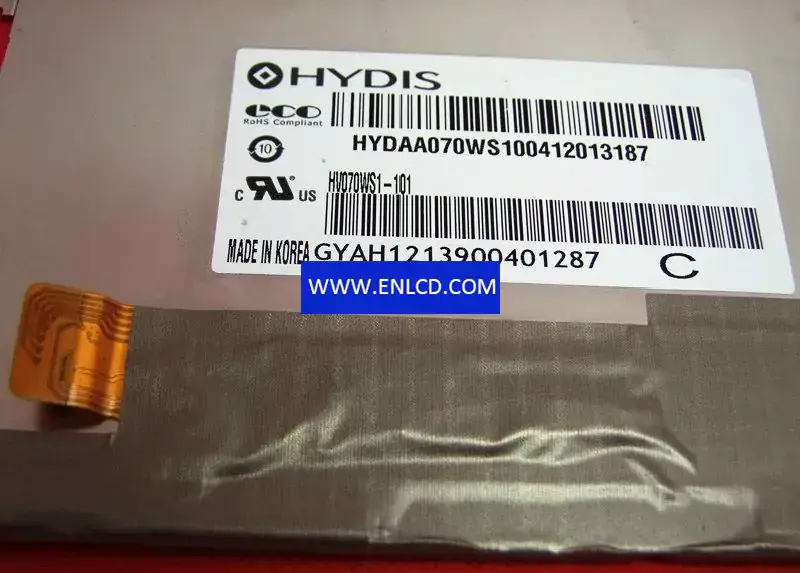

Manufacturer：HYDIS
Model Name：HV070WS1-1012 Compatible
Screen Size：7.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1024(RGB)×600 (WSVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：153.6 × 90 (H×V)
Outline(mm)： 163.6 × 102.9× 2.67 (H×V×D)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800 : 1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Response：50 (Typ.)(Tr+Td) ms
Good View at：Symmetry
Work Mode：HFFS, Normally Black, Transmissive
Color Depth：16.7M
Backlight：5S4PWLED, 50K hours, No Driver
Mass： 95.0g (Max.)
Used for： MID UMPC, MP4 PMP, Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 8-bit) + SPI, Connector , 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -40 ~ 70 °COperating Temp.: -20 ~ 60 °C
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
