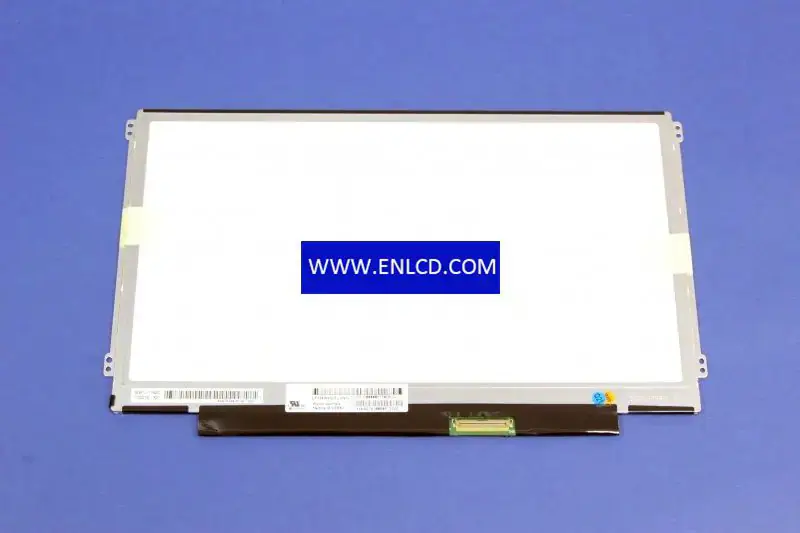

LG Display LP116WH2-TLN1 LCD panel

Manufacturer：LG Display
Screen Size： 11.6 inch
Pixel Number： 1366(RGB)×768(WXGA)
Active Area(mm)：256.125 × 144 (H×V)
Bezel Area(mm)：259.35 × 147.20 (H×V)
Luminance：200 (Typ.)(cd/m2)
Viewing Angle：40/40/10/30 (Min.)(CR≥10)
Good View at：6 o’clock
Color Depth：262K
Outline Shape： Flat (PCBA Flat, Depth 3.4~4.0mm)
Refresh Rate：60Hz
Model Name：LP116WH2-TLN1 (LGD0000) 2 Compatible
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 278 × 169 × 3.6 (H×V×D)
Treatment：Glare (Haze 0%)
Contrast Ratio： 300 : 1 (Min.) (TM)
Work Mode： TN, Normally White, Transmissive
Response：16 (Typ.)(Tr+Td) ms
Backlight： WLED , 12K hours , With LED Driver
Used for： Laptop, Netbook PC,
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 40 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
