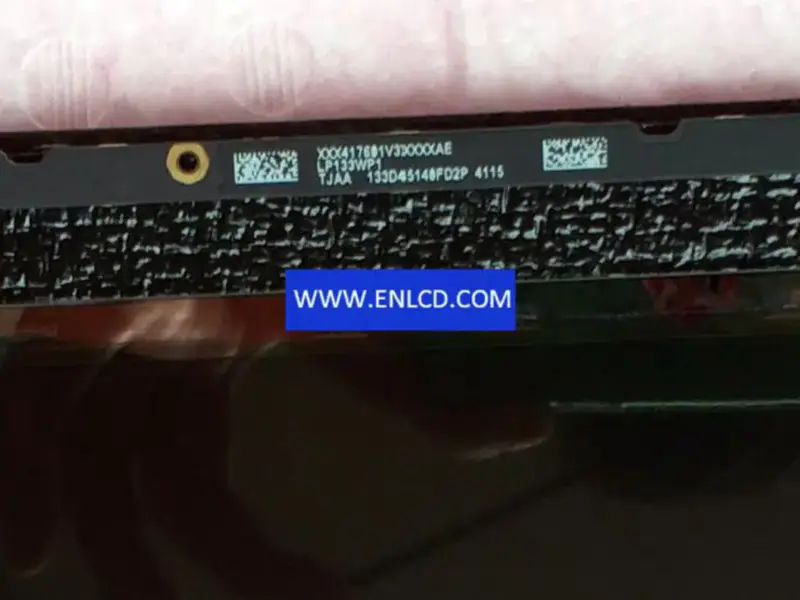

LG Display LP133WP1-TJAA LCD panel

Brand：LG Display
Model：LP133WP1-TJAA
Diagonal Size：13.3 inch
Type：a-Si TFT-LCD, CELL
Pixel Format：1440(RGB)×900[WXGA+]
Configuration：RGB Vertical Stripe
Active Area：286.2(H)×178.875(V) mm
Outline Dim.：299.41(H)×190.78(V) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：0 cd/m2
Contrast Ratio：600:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：70/70/50/50 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Plate Thickness：-
Transmittance：5.5% (Typ.)(with Polarizer)
Support Color：262K
Light Source：No B/L
Form Style： –
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinseDP (1 Lane), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
